Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Piloted Flange Cartridge
- QVC19V307S

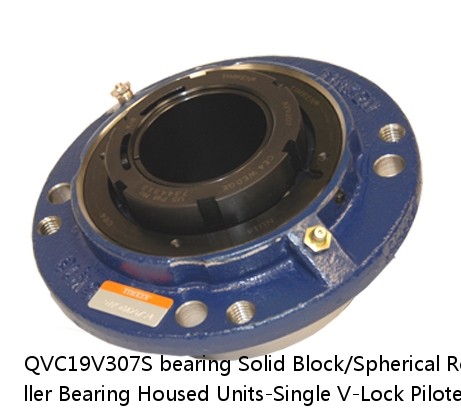

QVC19V307S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Piloted Flange Cartridge
QVC19V307S PDF download| Price： | enquiry |
| Model Number： | QVC19V307S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 32 lb14.5 Kg |
| UPC Code： | 0883450037822 0883450061810 0883450105613 0883450105651 0883450184151 0883450213080 0883450213462 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVC19V307SB QVC19V307SC QVC19V307SEB QVC19V307SEC QVC19V307SEM QVC19V307SEN QVC19V307SEO QVC19V307SET QVC19V307SM QVC19V307SN QVC19V307SO QVC19V307ST QVC19V307STNG |
| Locking Style | Single V-Lock |
| Weight | 32 lb14.5 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450037822 0883450061810 0883450105613 0883450105651 0883450184151 0883450213080 0883450213462 0883450225502 0883450225885 0883450237925 0883450238304 0883450295369 0883450955973 |
| Dimension BC | 8.63 in219.2 mm |
| Dimension C | 4.900 in124.50 mm |
| Dimension E | 6.10 in154.9 mm |
| Dimension B Fix | 2.46 in62.5 mm |
| Dimension B Exp | 2.54 in64.5 mm |
| Dimension F | 10.34 in262.6 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.77 in95.8 mm |
| Dimension RV | 0.08 in2.0 mm |
| Dimension SV | 3.69 in93.7 mm |
| Dimension G | 7.375 in187.3 mm |
| Dimension N | 1.31 in33.3 mm |
| C0 - Static Load | 99000 lb441 kN |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| FWJ-193124Z | FWJ-193124Z | 46.0 | 19.10 | 31.10 | 3150 | 31000 |
| E/4BF/TRB/3 1/2 | 2.07 | 1.71 | 0.7 | 0.87 | 50.000 lb | 053893540467 |
| QVVFK20V090S | 4.23 | 2.84 | 35 lb15.90 Kg | 0883450363426 0883450363433 0883450363440 0883450363457 0883450363464 0883450363471 0883450363488 08 | 0.0030 in0.076 mm | 90 mm |
| 24128AX | 140 | 2.1 | 12.70 | 2800 | 2100 | 225 |
| FNL 510 A + C 2210 K + H 310 E | FNL 510 A + C 2210 K + H ... | 179.000 | FNL 510 A | 60.000 | 160.000 | 45.000 |
| 7920C FY | 100 | 1.1 | 7920C FY | 9200 | 7000 | 140 |
| 2MMC9308WI | 0.60 mm0.024 in | 0.60 mm0.024 in | 53760 rpm | 26880 rpm | 6.350 mm1/4 in | METRIC |
| 432226XU | 130 | 1.0 | 4.0 | 432226XU | 24.100 | 1700 |
| M-20101 | M-20101 | 31.750 | 38.100 | 7.70 | 23.90 | 50.70 |
| 23948E | 240 | 2.1 | 13.70 | 1600 | 1200 | 320 |
