Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU19V080S

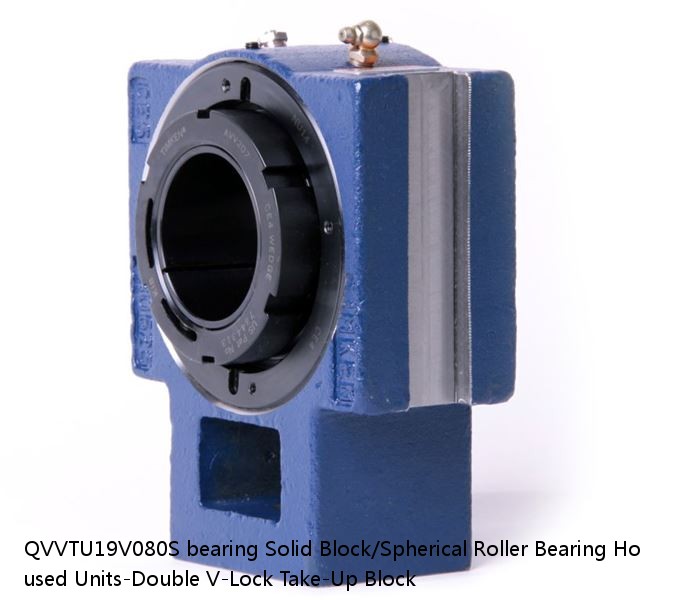

QVVTU19V080S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU19V080S PDF download| Price： | enquiry |
| Model Number： | QVVTU19V080S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 44 lb20.00 Kg |
| UPC Code： | 0883450377164 0883450377171 0883450377188 0883450377195 0883450377201 0883450377218 0883450377225 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 80 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVTU19V080SB QVVTU19V080SC QVVTU19V080SEB QVVTU19V080SEC QVVTU19V080SEM QVVTU19V080SEN QVVTU19V080SEO QVVTU19V080SET QVVTU19V080SM QVVTU19V080SN QVVTU19V080SO QVVTU19V080ST |
| Locking Style | Double V-Lock |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450377164 0883450377171 0883450377188 0883450377195 0883450377201 0883450377218 0883450377225 0883450377232 0883450377249 0883450377256 0883450377263 0883450377270 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension N | 3.92 in99.6 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension RVV | 0.71 in18.0 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.49 in114.0 mm |
| Dimension TVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.110 mm0.0043 in |
| Pre Install Clearance Max | 0.140 mm0.0055 in |
