Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU19V303S

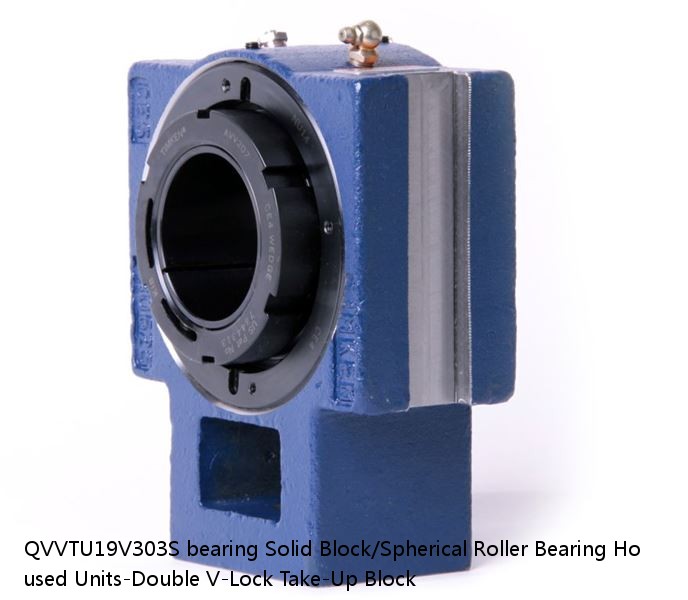

QVVTU19V303S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU19V303S PDF download| Price： | enquiry |
| Model Number： | QVVTU19V303S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 44 lb20.00 Kg |
| UPC Code： | 0883450377522 0883450377539 0883450377546 0883450377553 0883450377560 0883450377577 0883450377584 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 3-3/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU19V303SB QVVTU19V303SC QVVTU19V303SEB QVVTU19V303SEC QVVTU19V303SEM QVVTU19V303SEN QVVTU19V303SEO QVVTU19V303SET QVVTU19V303SM QVVTU19V303SN QVVTU19V303SO QVVTU19V303ST QVVTU19V303STXY |
| Locking Style | Double V-Lock |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450377522 0883450377539 0883450377546 0883450377553 0883450377560 0883450377577 0883450377584 0883450377591 0883450377607 0883450377614 0883450377621 0883450377638 0883450958882 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension N | 3.92 in99.6 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension RVV | 0.71 in18.0 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.49 in114.0 mm |
| Dimension TVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.110 mm0.0043 in |
| Pre Install Clearance Max | 0.140 mm0.0055 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NUP2216 | 80 | 2.0 | 2.0 | 5400 | 4000 | NUP2216 |
| *30228U | 45.75 | 140 | 3.0 | 4.0 | *30228U | 9.26 |
| SNW/34 x 5 7/8 | -0.005 in | 1:12 | S-34 x 5 7/8 | 222K | 1.219 in | W-34 |
| C 4192 K30MB | 630 | 480 | - | 460.000 | 1020.000 | 15000.000 |
| P2BC 40M-TPSS | 2800 | 19 | 24.7 | P2BC 508 | P2BC 40M-TPSS | YAR 208-2LPW/SS |
| IR/809648 | 7.330 lb3.325 Kg | HJ-9612048 | 5.000 in | 126.962 mm4.9985 in | 127.015 mm5.0006 in | 126.985 mm4.9994 in |
| SIL 40 ES-2RS | 166.00 | 100.00 | 94.000 | 40.000 | 24.000 | 28.000 |
| 24160KEJW33W45AC2 | 1.78 | 2.71 | 1.82 | 24160KCJW33W45AC2 | 470 | 440 |
| NN3092 | 18 | 460 | 5 | 6.0 | NN3092 | 486 |
| 61808/2RS | 0.029 Kg | 0.300 mm | 7.000 mm | 52.000 mm | Contact Seals | 4.9 kN |
