Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU14V065S

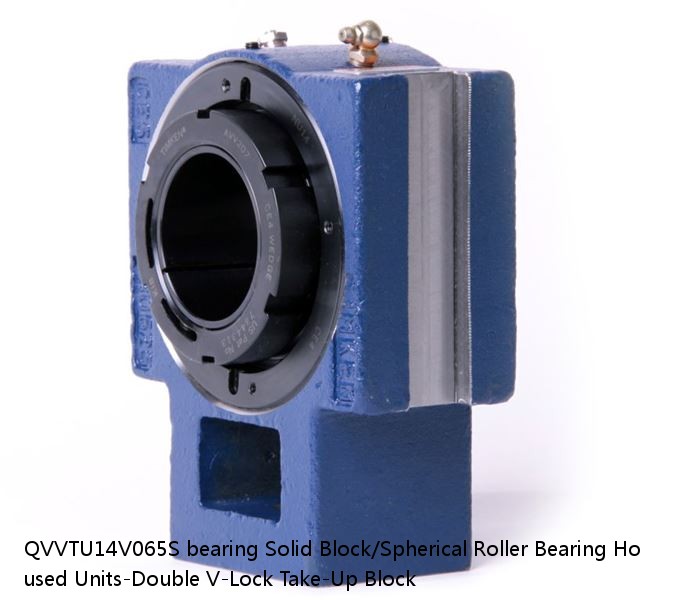

QVVTU14V065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU14V065S PDF download| Price： | enquiry |
| Model Number： | QVVTU14V065S |
| Weight： | 4.32 |
| Bearing Number： | 2.90 |
| Housing Construction： | 17.0 lb7.7 Kg |
| UPC Code： | 0883450376082 0883450376099 0883450376105 0883450376112 0883450376129 0883450376136 0883450376143 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVTU14V065SB QVVTU14V065SC QVVTU14V065SEB QVVTU14V065SEC QVVTU14V065SEM QVVTU14V065SEN QVVTU14V065SEO QVVTU14V065SET QVVTU14V065SM QVVTU14V065SN QVVTU14V065SO QVVTU14V065ST |
| Locking Style | Double V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450376082 0883450376099 0883450376105 0883450376112 0883450376129 0883450376136 0883450376143 0883450376150 0883450376167 0883450376174 0883450376181 0883450376198 |
| Dimension A | 2.75 in69.9 mm |
| Dimension C | 0.88 in22.4 mm |
| Dimension D | 5.88 in149.4 mm |
| Dimension E | 5.13 in130.3 mm |
| Dimension F | 1.31 in33.3 mm |
| Dimension G | 1.31 in33.3 mm |
| Dimension J | 3.75 in95.3 mm |
| Dimension L | 7.63 in193.8 mm |
| Dimension N | 3.48 in88.4 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension S | 1.060 in26.90 mm |
| Dimension T | 3.99 in101.3 mm |
| Dimension TVV | 4.09 in103.9 mm |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| C0 - Static Load | 52000 lb231 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.32 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.094 mm0.0037 in |
