Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU16V075S

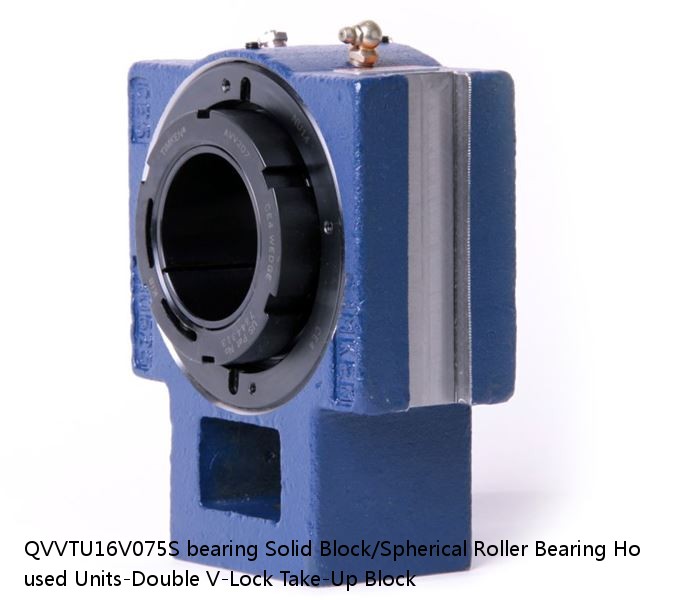

QVVTU16V075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU16V075S PDF download| Price： | enquiry |
| Model Number： | QVVTU16V075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 35 lb15.90 Kg |
| UPC Code： | 0883450376563 0883450376570 0883450376587 0883450376594 0883450376600 0883450376617 0883450376624 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVTU16V075SB QVVTU16V075SC QVVTU16V075SEB QVVTU16V075SEC QVVTU16V075SEM QVVTU16V075SEN QVVTU16V075SEO QVVTU16V075SET QVVTU16V075SM QVVTU16V075SN QVVTU16V075SO QVVTU16V075ST |
| Locking Style | Double V-Lock |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450376563 0883450376570 0883450376587 0883450376594 0883450376600 0883450376617 0883450376624 0883450376631 0883450376648 0883450376655 0883450376662 0883450376679 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension N | 3.55 in90.2 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.64 in16.3 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.08 in103.6 mm |
| Dimension TVV | 4.18 in106.2 mm |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| C0 - Static Load | 62500 lb278 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.095 mm0.0037 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 387/382 | 21.000 | 57.150 | 0.8 | 2.4 | 5200 | 3900 |
| 2MV216WI | 2.00 mm0.079 in | 2.00 mm0.079 in | 20200 rpm | 10100 rpm | 19.050 mm1 -1/4 in | METRIC |
| LM 203242N U AJ | One side Seal (U) | Steel | LM 203242N U AJ | Plastic | 20 | - |
| CUKP207C_H | CUKP207C_H | - | - | - | - | - |
| 6302/2RZ/C3 | 0.080 Kg | 1.000 mm | 13.000 mm | 42.000 mm | 24000 rpm | 16000 rpm |
| SDA5016VA-5G0+111LC0 | 111.000 | SDA5016VA-5 | There is the groove on bo... | - | - | - |
| SYE-2.11/16N | 35.71875 | 2800 | 0.79375 | 20.017 | 71.1715 | 48.041 |
| 23180CAME4 | 23180CAME4 | 257.00 | 650 | 2.3 | 3.4 | 2.3 |
| NKJ9/16 | 9 | 0.3 | NKJ9/16 | 30000 | 12 | 19 |
| UCTH210-31J-300 | Normal-duty(2) | UCTH210-31J-300 | B-1/4-28UNF | 1 15/16 | - | - |
