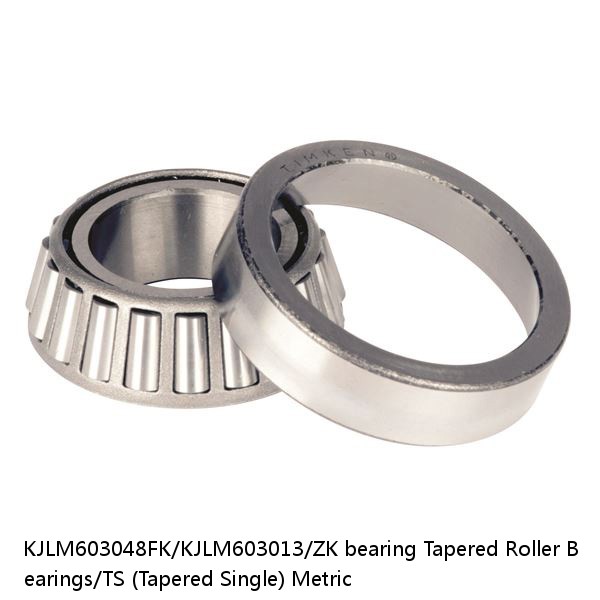

KJLM603048FK/KJLM603013/ZK bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
KJLM603048FK/KJLM603013/ZK PDF download| Price： | enquiry |
| Model Number： | KJLM603048FK/KJLM603013/ZK |
| Series： | 21.500 mm0.8465 in |
| r - Cup Backface "To Clear" Radius2： | LM603000 |
| Design Units： | 2.29 mm0.090 in |
| Db - Cup Backface Backing Diameter： | 3.560 mm0.14 in |
| da - Cone Frontface Backing Diameter： | 26.4 |
| Series | LM603000 |
| Cone Part Number | KJLM603048FK |
| Cup Part Number | KJLM603013-ZK |
| Design Units | METRIC |
| Bearing Weight | 0.4 Kg0.8 lb |
| Cage Type | Stamped Steel |
| d - Bore | 45.000 mm1.7717 in |
| D - Cup Outer Diameter | 78.000 mm3.0709 in |
| B - Cone Width | 24.000 mm0.9449 in |
| C - Cup Width | 15.000 mm0.5906 in |
| T - Bearing Width | 21.500 mm0.8465 in |
| R - Cone Backface "To Clear" Radius1 | 3.560 mm0.14 in |
| r - Cup Backface "To Clear" Radius2 | 2.29 mm0.090 in |
| da - Cone Frontface Backing Diameter | 50.55 mm1.99 in |
| db - Cone Backface Backing Diameter | 56.90 mm2.24 in |
| Da - Cup Frontface Backing Diameter | 74.68 mm2.94 in |
| Db - Cup Backface Backing Diameter | 69.09 mm2.72 in |
| Ab - Cage-Cone Frontface Clearance | 0 mm0 in |
| Aa - Cage-Cone Backface Clearance | 0 mm0 in |
| a - Effective Center Location3 | -4.1 mm-0.16 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 19800 N4450 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 76300 N17200 lbf |
| C0 - Static Radial Rating | 77900 N17500 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 14500 N3250 lbf |
| K - Factor7 | 1.37 |
| e - ISO Factor8 | 0.43 |
| Y - ISO Factor9 | 1.41 |
| G1 - Heat Generation Factor (Roller-Raceway) | 26.4 |
| G2 - Heat Generation Factor (Rib-Roller End) | 14.4 |
| Cg - Geometry Factor10 | 0.0785 |
