Deep Groove Ball Bearings

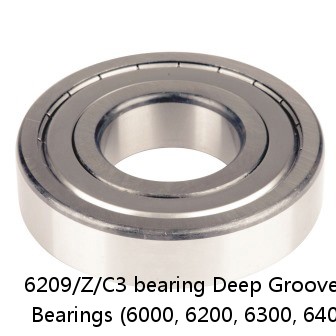

6209/Z/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)

Buy Now
Contact Now

Price：	enquiry
Model Number：	6209/Z/C3
Weight：	0.420 Kg
Radius Rs min：	1.100 mm
Outside Ring Width B：	19.000 mm
Outside Diameter D：	85.000 mm
Features：	12000 rpm

Clearance	C3
Bore Size d	45 mm
Features	One Shield
Bearing Type	Standard DGBB
Weight	0.420 Kg
Outside Diameter D	85.000 mm
Outside Ring Width B	19.000 mm
Radius Rs min	1.100 mm
Cr - Dynamic Load Rating	31.2 kN
C0r - Static Load Rating	20.3 kN
Grease Reference Speed	8200 rpm
Oil Reference Speed	12000 rpm
