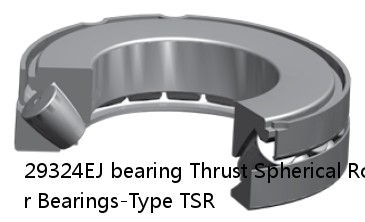

29324EJ bearing | Thrust Spherical Roller Bearings-Type TSR
29324EJ PDF download| Price： | enquiry |
| Model Number： | 29324EJ |
| Weight： | 7.20 Kg15.8 lb |
| Thermal Speed Rating： | 1700 rpm |
| T3 - Cup Width： | 27.00 mm1.063 in |
| T1 - Cage Position： | 46.00 mm1.811 in |
| T - Total Width： | 54.00 mm2.126 in |
| UPC Code | 87796358119 |
| Weight | 7.20 Kg15.8 lb |
| Bearing Type | Thrust Spherical Roller Bearings - TSR |
| d - Bore | 120 mm4.724 in |
| D - Outside Diameter | 210.000 mm8.268 in |
| d1 - Cone Outside Diameter | 188.10 mm7.406 in |
| D1 - Cup Bore | 154.00 mm6.063 in |
| E - Shoulder Diameter - Housing (Max) | 163.00 mm6.417 in |
| H - Shoulder Diameter - Shaft (Min) | 172.00 mm6.772 in |
| r - Fillet Radius | 2.00 mm0.080 in |
| S - Dimension | 70 mm2.756 in |
| T - Total Width | 54.00 mm2.126 in |
| T1 - Cage Position | 46.00 mm1.811 in |
| T3 - Cup Width | 27.00 mm1.063 in |
| T4 - Cone Width | 34.00 mm1.339 in |
| Static Load Rating | 2070 kN466000 lbf |
| Dynamic Load Rating | 768 kN173000 lbf |
| Thermal Speed Rating | 1700 rpm |
| No. | Weight | Thermal Speed Rating | T3 - Cup Width | T1 - Cage Position | T - Total Width | Static Load Rating |
|---|---|---|---|---|---|---|
| 3MV9302WI | 0.30 mm0.012 in | 0.30 mm0.012 in | 100000 rpm | 50000 rpm | 3.571875 mm0.140625 in | METRIC |
| V270C135-0 1 | 65 | M10 | M24 | 2 | V270C135-0 | GS 30 |
| NK28/20A | 0.3 | NK28/20A | 16000 | 28 | 37 | 5.50 |
| 6002T1XZZ | 15 | 0.3 | 6002T1XZZ | 29800 | 32 | 5.60 |
| 7220CDF | 100 | 1.10 | 2.1 | 7220C | 3.08 | 6 100 |
| 240/800EK30 | 800 | 7.5 | 1200.00 | 370 | 300 | 1150 |
| 51306 | 21 | 60 | 30 | 1.0 | 0.270 | 4200 |
| FSAF 22516 T | 330.200 | FSAF 516 | 88.9000 | 169.86250 | FSAF 22516 T | 68.2625 |
| PHSA 8 | 15.875 | 10.4 | 8 | PHSA 8 | 45 | 10200 |
| 4T-387AS/382A | 57.150 | 0.8 | 5 | 4T-387AS/382A | 0.58 | 96.840 |
