Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC17K215S

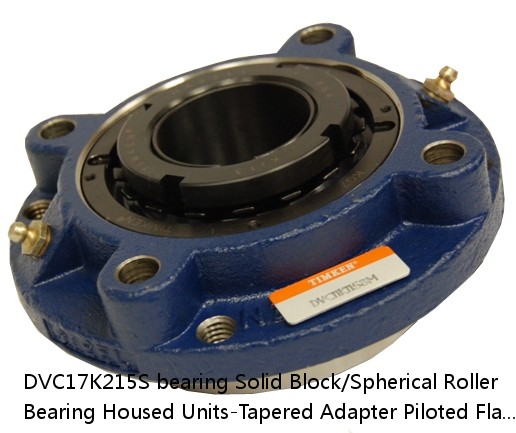

DVC17K215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC17K215S PDF download| Price： | enquiry |
| Model Number： | DVC17K215S |
| Weight： | 4.57 |
| Bearing Number： | 3.07 |
| Housing Construction： | 25 lb11.3 Kg |
| UPC Code： | 0883450004527 0883450004534 0883450004558 0883450004565 0883450004572 0883450004589 0883450004596 08 |
| Shaft Size Type： | 0.0040 in0.102 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | DVC17K215SB DVC17K215SC DVC17K215SEB DVC17K215SEC DVC17K215SEM DVC17K215SEN DVC17K215SEO DVC17K215SET DVC17K215SLRC DVC17K215SM DVC17K215SN DVC17K215SNNG DVC17K215SO DVC17K215ST DVC17K215STNG DVC17K21 |
| Locking Style | Tapered Adapter |
| Weight | 25 lb11.3 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450004527 0883450004534 0883450004558 0883450004565 0883450004572 0883450004589 0883450004596 0883450004602 0883450196925 0883450197120 0883450274432 0883450274630 0883450434256 0883450454711 0883 |
| Dimension BC | 7.50 in190.5 mm |
| Dimension C | 4.330 in110.000 mm |
| Dimension E | 5.30 in134.6 mm |
| Dimension F | 8.75 in222.3 mm |
| Dimension H | 1.28 in32.5 mm |
| Dimension I | 3.55 in90.2 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.14 in79.8 mm |
| Dimension M | 1.96 in49.8 mm |
| Dimension R | 0.09 in2.3 mm |
| Dimension S | 3.23 in82 mm |
| Dimension G | 6.375 in161.9 mm |
| Dimension N | 1.38 in35.1 mm |
| C0 - Static Load | 71900 lb320 kN |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.07 |
| Y2 - Geometry Factor | 4.57 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0043 in0.109 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
| Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
| Adapter Sleeve Axial Movement Min | 0.027 in0.686 mm |
| Adapter Sleeve Axial Movement Max | 0.038 in0.965 mm |
| Post Install Int Radial Clearance Min | 0.0020 in0.051 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 22214EAE4 | 22214EAE4 | 1.58 | 125 | 2.9 | 4.3 | 2.8 |
| 22348EMBW525 | 2.05 | 3.13 | 2.1 | 910 | 820 | 4.000 mm0.160 in |
| 6321/NR/C3 | 8.110 Kg | 3.000 mm | 49.000 mm | 225.000 mm | 6000 rpm | 4200 rpm |
| 42362D/42585 | 2.2499 in57.147 mm | 42000 | 0.060 in1.50 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 5.8437 in148.430 mm |
| UCHA215-48 | A-R1/8 | UCHA215-48 | 3.00000000 | Normal-duty(2) | - | - |
| E/P2B/TRB/2 11/16/ECO | 2.26 | 1.87 | 0.7 | 0.87 | 28 lb | 0883450507202 |
| E/TTU/TRB/1 3/4/ECO/ECC | 3.18 | 2.64 | 0.7 | 0.87 | 14 lb | 0883450506120 |
| 3MVC9104WI | 0.60 mm0.024 in | 0.60 mm0.024 in | 80160 rpm | 40080 rpm | 6.350 mm1/4 in | METRIC |
| 7052BDF FY | 260 | 1.5 | 4.0 | 1200 | 910 | 7052BDFFY |
| 6202T1XZZ | 15 | 0.6 | 6202T1XZZ | 28000 | 35 | 7.65 |
