Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block
- QVTU16V075S

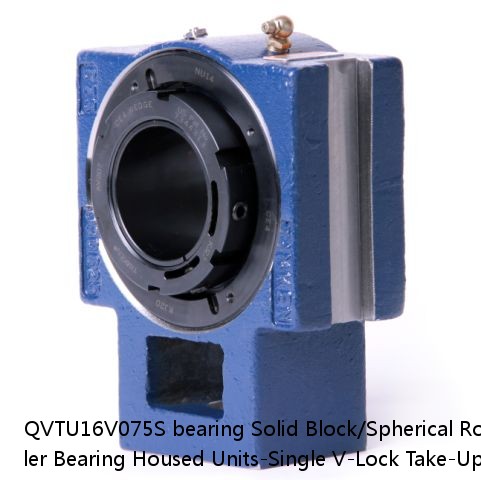

QVTU16V075S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block
QVTU16V075S PDF download| QVTU16V075S interchange timken QVTU16V075S | |
| QVTU16V075S cross reference timken QVTU16V075S | |
| QVTU16V075S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVTU16V075S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 35 lb15.90 Kg |
| r(min): | 0883450359221 0883450359238 0883450359245 0883450359252 0883450359269 0883450359276 0883450359283 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 75 mm |
| Size: | Metric |
| Weight： | 0.095 mm0.0037 in |
| Bearing Number： | 0.120 mm0.0047 in |
| Housing Construction： | 2650 rpm |
| UPC Code： | 1500 rpm |
| Shaft Size Type： | 1200 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVTU16V075SB QVTU16V075SC QVTU16V075SEB QVTU16V075SEC QVTU16V075SEM QVTU16V075SEN QVTU16V075SEO QVTU16V075SET QVTU16V075SM QVTU16V075SN QVTU16V075SO QVTU16V075ST |
| Locking Style | Single V-Lock |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450359221 0883450359238 0883450359245 0883450359252 0883450359269 0883450359276 0883450359283 0883450359290 0883450359306 0883450359313 0883450359320 0883450359337 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension N | 3.55 in90.2 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RV | 0.09 in2.3 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension TV | 3.45 in87.6 mm |
| C0 - Static Load | 62500 lb278 kN |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.095 mm0.0037 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7336BDF | 180 | 1.50 | 4.0 | 7336B | 40.900 | 2 100 |
| LM 203242 F U AJ | One side Seal (U) | Stainless | LM 203242 F U AJ | Stainless | 20 | - |
| 23156KEMBW890 | 2.21 | 3.36 | 2.26 | 870 | 770 | 4.000 mm0.160 in |
| 24072EJW33W45AC4 | 2.19 | 3.33 | 2.24 | 24072CJW33W45AC4 | 600 | 540 |
| SYWK 1.1/4 AYTH | 3800 | 11.2 | 16.3 | SYWK 506 Y | SYWK 1.1/4 AYTH | YAR 206-104-2RF/HV |
| H305 | 0.080 Kg | M25x1.5 | MB5 | KM5 | 29.00 mm | 38 mm |
| FSAF 22515 2/3/8 | LOR 35 | Triple Ring Seal | FSAF 515 x 2-3/8 | 6.375 in | FSAF225152-3/8 | 8.6250 in |
| 6313ZZ | 65 | 2.1 | 6313ZZ | 4800 | 140 | 4.5 |
| 81106 TN | 6000 | 3000 | 78.000 | 27.000 | 11.000 | 5.000 |
| QVFK13V203S | 4.00 | 2.69 | 14 lb6.4 Kg | 0883450339629 0883450339636 0883450339643 0883450339650 0883450339667 0883450339674 0883450339681 08 | 0.0015 in0.038 mm | 2-3/16 in |
