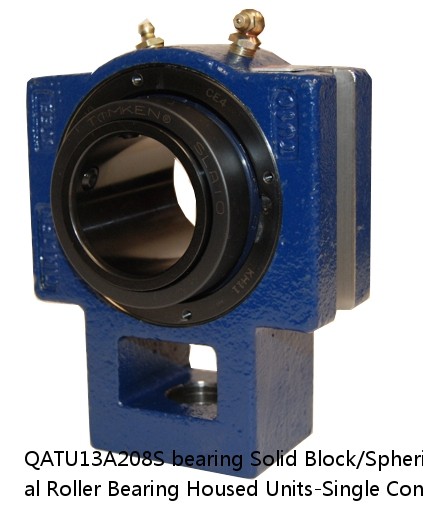

QATU13A208S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU13A208S PDF download| Price： | enquiry |
| Model Number： | QATU13A208S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 27 lb12.2 Kg |
| UPC Code： | 0883450050302 0883450050319 0883450050333 0883450050340 0883450050357 0883450050364 0883450050371 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 2-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU13A208SB QATU13A208SC QATU13A208SEB QATU13A208SEC QATU13A208SEM QATU13A208SEN QATU13A208SEO QATU13A208SET QATU13A208SM QATU13A208SN QATU13A208SO QATU13A208ST |
| Locking Style | Single Concentric |
| Weight | 27 lb12.2 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450050302 0883450050319 0883450050333 0883450050340 0883450050357 0883450050364 0883450050371 0883450050388 0883450195218 0883450195379 0883450272384 0883450272551 |
| Dimension A | 2.75 in69.9 mm |
| Dimension C | 0.88 in22.4 mm |
| Dimension D | 5.88 in149.4 mm |
| Dimension E | 5.13 in130.3 mm |
| Dimension F | 1.31 in33.3 mm |
| Dimension G | 1.31 in33.3 mm |
| Dimension J | 3.75 in95.3 mm |
| Dimension L | 7.63 in193.8 mm |
| Dimension KA | 1.24 in31.5 mm |
| Dimension M | 2.15 in54.6 mm |
| Dimension N | 3.59 in91.2 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension S | 1.060 in26.90 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 90801 | 90801 | 335.220 | 340.004 | 50.000 | - | - |
| 2313K;H2313X | 65 | 2313K;H2313X | 0.560 | - | - | - |
| 7340BDT FY | 200 | 5.0 | 7340BDT FY | 1300 | 1000 | 420 |
| UKC313+H2313X | A-PT1/8 | 60 | Heavy-duty(3) | UKC313+H2313X | - | - |
| H311 | 0.350 Kg | M55x2 | MB11 | KM11 | 45.00 mm | 75 mm |
| W688ZZ | 8.0 | 0.20 | 42000 | 16 | 0.020 | 1.55 |
| 6301/ZZ | 0.060 Kg | 1.000 mm | 12.000 mm | 37.000 mm | 27000 rpm | 19000 rpm |
| K145x153x28 | K145x153x28 | 0.252 | 2800 | 1900 | 145 | 153 |
| DV/167 | V-200-A | 544 | Shaft seal may be ordered in place of the standard LER triple ring seals supplied with the pillow bl | 2-262 | 1. Check shaft diameters to print specification. Remove any burrs or sharp edges. Be sure shaft surf | EPS-25 |
| CR 8VB | 1.4 | 4.826 | 0.397 | - | - | 8.334 |
