Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
- QMTU18J307S

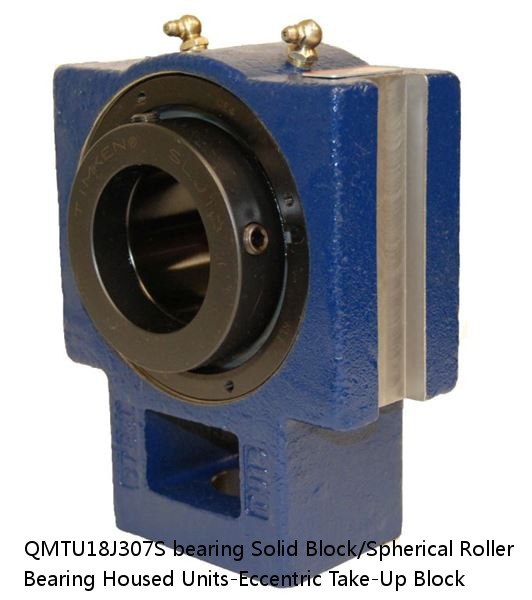

QMTU18J307S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
QMTU18J307S PDF download| Price： | enquiry |
| Model Number： | QMTU18J307S |
| Weight： | 4.31 |
| Bearing Number： | 2.90 |
| Housing Construction： | 44 lb20.00 Kg |
| UPC Code： | 0883450103770 0883450103787 0883450103800 0883450103817 0883450103824 0883450103831 0883450103848 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMTU18J307SB QMTU18J307SC QMTU18J307SEB QMTU18J307SEC QMTU18J307SEM QMTU18J307SEN QMTU18J307SEO QMTU18J307SET QMTU18J307SM QMTU18J307SN QMTU18J307SO QMTU18J307ST |
| Locking Style | Eccentric |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450103770 0883450103787 0883450103800 0883450103817 0883450103824 0883450103831 0883450103848 0883450103855 0883450169363 0883450169745 0883450260763 0883450261081 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension K | 1.44 in36.6 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension N | 4.19 in106.4 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.060 mm0.0024 in |
| Pre Install Clearance Max | 0.100 mm0.0039 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| BRI 61812 | 9.525 | 0.6 | BRI 61812 | 67.5 | 15.875 | 24.5 |
| KR-008XS | - | - | KR-008XS (For KR33 1 axis) | - | - | - |
| JLM714149/JLM714110 | 25.000 mm0.9843 in | LM714100 | 2.54 mm0.1 in | 3.050 mm0.12 in | 76.3 | METRIC |
| ACH550-BCR-03A3-4-1.5 | 1.5 | BX1-1 | 3.3 | R1 | - | - |
| FBN-424727 | FBN-424727 | 38.0 | 42.00 | 47.00 | 3100 | 30500 |
| K18X22X14FV | K18X22X14FV | 24000 | 18.000 | 22.000 | 2.45 | 16.30 |
| 23280YMBW906AC4 | 1.92 | 2.93 | 1.96 | 380 | 350 | 5.000 mm0.200 in |
| R-TW0613 | R-TW0613 | 12.8 | 6.2 | - | - | 0.8 |
| 22316 E | 4000 | 3000 | 54.000 | 530.000 | 516.000 | 170.000 |
| 89460 M | 530 | 280 | 18000.000 | 3450.000 | 145.000 | 0.000 |
