Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
- QMTU10J050S

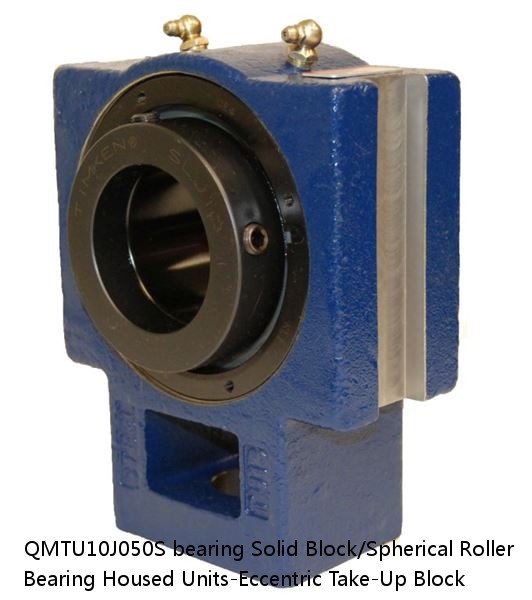

QMTU10J050S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
QMTU10J050S PDF download| Price： | enquiry |
| Model Number： | QMTU10J050S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 17.0 lb7.7 Kg |
| UPC Code： | 0883450036597 0883450101974 0883450101981 0883450102018 0883450102025 0883450102032 0883450102049 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 50 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMTU10J050SB QMTU10J050SC QMTU10J050SEB QMTU10J050SEC QMTU10J050SEM QMTU10J050SEN QMTU10J050SEO QMTU10J050SET QMTU10J050SM QMTU10J050SN QMTU10J050SO QMTU10J050SONG QMTU10J050ST |
| Locking Style | Eccentric |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450036597 0883450101974 0883450101981 0883450102018 0883450102025 0883450102032 0883450102049 0883450102056 0883450169202 0883450169585 0883450260589 0883450260909 0883450493284 |
| Dimension A | 2.13 in54.1 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 4.75 in120.7 mm |
| Dimension E | 4.00 in101.6 mm |
| Dimension F | 1.06 in26.9 mm |
| Dimension G | 1.06 in26.9 mm |
| Dimension J | 2.88 in73.2 mm |
| Dimension L | 6.04 in153.4 mm |
| Dimension K | 0.98 in24.9 mm |
| Dimension M | 1.89 in48 mm |
| Dimension N | 3.02 in76.7 mm |
| Dimension P | 3.50 in88.9 mm |
| Dimension S | 0.690 in17.50 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
