Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
- QMTU11J055S

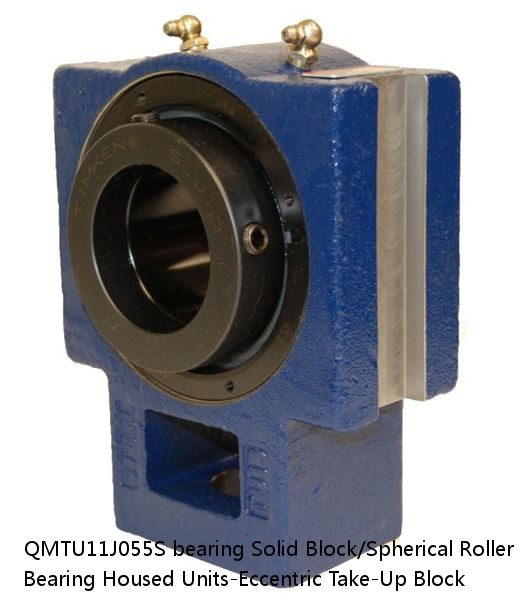

QMTU11J055S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
QMTU11J055S PDF download| Price： | enquiry |
| Model Number： | QMTU11J055S |
| Weight： | 4.40 |
| Bearing Number： | 2.95 |
| Housing Construction： | 21.0 lb9.5 Kg |
| UPC Code： | 0883450036627 0883450036696 0883450260619 0883450260930 0883450265089 0883450265096 0883450265102 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 55 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMTU11J055SB QMTU11J055SC QMTU11J055SEB QMTU11J055SEC QMTU11J055SEM QMTU11J055SEN QMTU11J055SEO QMTU11J055SET QMTU11J055SM QMTU11J055SN QMTU11J055SO QMTU11J055ST |
| Locking Style | Eccentric |
| Weight | 21.0 lb9.5 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450036627 0883450036696 0883450260619 0883450260930 0883450265089 0883450265096 0883450265102 0883450265119 0883450265164 0883450265171 0883450265188 0883450265195 |
| Dimension A | 2.38 in60.5 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 5.25 in133.4 mm |
| Dimension E | 4.50 in114.3 mm |
| Dimension F | 1.19 in30.2 mm |
| Dimension G | 1.19 in30.2 mm |
| Dimension J | 3.50 in88.9 mm |
| Dimension L | 6.61 in167.9 mm |
| Dimension K | 1.13 in28.7 mm |
| Dimension M | 1.99 in50.5 mm |
| Dimension N | 3.26 in82.8 mm |
| Dimension P | 3.75 in95.3 mm |
| Dimension S | 0.810 in20.60 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1600 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| BT4-8116 E1/C525 | 340.000 | 655 | 7650 | 3650 | BT4-8116 E1/C525 | 285.000 |
| NKJ10/20A | 10 | 0.3 | NKJ10/20A | 24000 | 14 | 22 |
| 23160KEMBW507C08 | 2.2 | 3.35 | 2.25 | 760 | 680 | 4.000 mm0.160 in |
| 3213 | 65 | 1.5 | 4300 | 3200 | 120 | 5.05 |
| FIR-506040-1 | 50 | FIR-506040-1 | 0.270 | 60 | - | 40 |
| 22230EXQK | 150 | 3.0 | 18.90 | 2500 | 2000 | 270 |
| JP-24-F | JP-24-F | 51000 | 3.175 | 6.350 | 0.15 | 1.33 |
| YCR-12 | 6.350 | YCR-12 | 0.027 | 465 | 4550 | 12.7 |
| FBL35B+324L | FBL35B | - | - | - | - | - |
| 7038CDF | 190 | 1.10 | 2.1 | 7038C | 10.80 | 3 400 |
