Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU19V090S

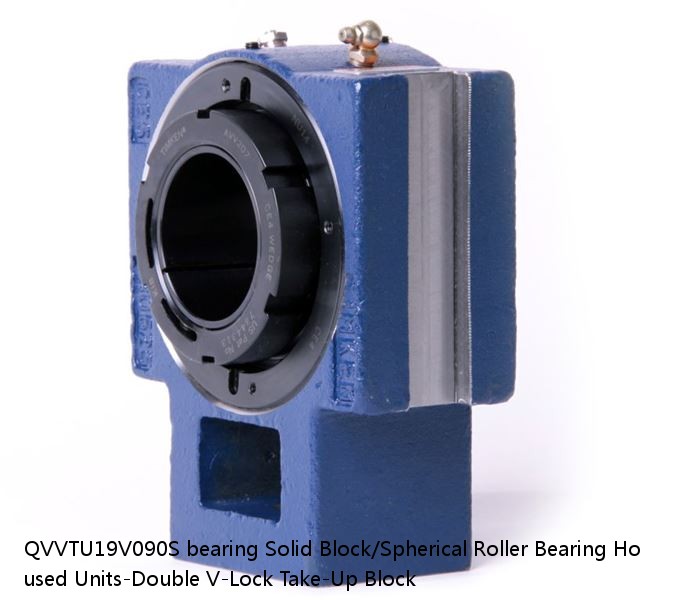

QVVTU19V090S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU19V090S PDF download| Price： | enquiry |
| Model Number： | QVVTU19V090S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 44 lb20.00 Kg |
| UPC Code： | 0883450377409 0883450377416 0883450377423 0883450377430 0883450377447 0883450377454 0883450377461 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 90 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVTU19V090SB QVVTU19V090SC QVVTU19V090SEB QVVTU19V090SEC QVVTU19V090SEM QVVTU19V090SEN QVVTU19V090SEO QVVTU19V090SET QVVTU19V090SM QVVTU19V090SN QVVTU19V090SO QVVTU19V090ST |
| Locking Style | Double V-Lock |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450377409 0883450377416 0883450377423 0883450377430 0883450377447 0883450377454 0883450377461 0883450377478 0883450377485 0883450377492 0883450377508 0883450377515 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension N | 3.92 in99.6 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension RVV | 0.71 in18.0 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.49 in114.0 mm |
| Dimension TVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.110 mm0.0043 in |
| Pre Install Clearance Max | 0.140 mm0.0055 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 3MM224WI | 2.1 mm0.079 in | 2.1 mm0.079 in | 12000 rpm | 6000 rpm | 30.16250 mm1-3/16 in | METRIC |
| 4T-02475/02420 | 31.750 | 1.5 | 3.5 | 4T-02475/02420 | 0,38 | 68.262 |
| NK30/20A | 0.3 | NK30/20A | 15000 | 30 | 40 | 6.10 |
| SNLN 3038 + 23038 CC/W33 | 550 | SNLN 3038 | 347 | SNLN 3038 + 23038 CC/W33 | 190 | 23038 CC/W33 |
| K19X23X13 | K19X23X13 | 23000 | 19.000 | 23.000 | 2.35 | 15.50 |
| N1052KR | 260 | 3 | 4.0 | 4.0 | N1052KR | 276 |
| 627/2RZ | 0.012 Kg | 0.300 mm | 7.000 mm | 22.000 mm | 39000 rpm | 33000 rpm |
| WMLF6012ZZ | 6.0 | 0.10 | 49000 | 12 | 0.008 | 0.890 |
| RLM283730 | 0.50 | RLM283730 | 0.0750 | 12000 | 28 | 37 |
| 6303/RS/C3 | 0.120 Kg | 1.000 mm | 14.000 mm | 47.000 mm | 22000 rpm | 15000 rpm |
