Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
- QMPF20J315S

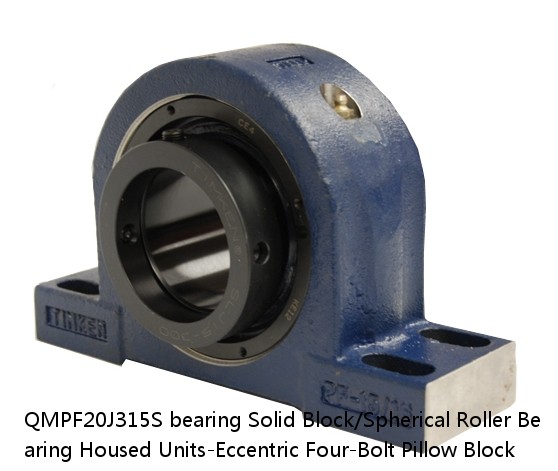

QMPF20J315S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
QMPF20J315S PDF download| Price： | enquiry |
| Model Number： | QMPF20J315S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 67 lb30.400 Kg |
| UPC Code： | 0883450085021 0883450085038 0883450085052 0883450085069 0883450085076 0883450085083 0883450085090 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPF20J315SB QMPF20J315SC QMPF20J315SEB QMPF20J315SEC QMPF20J315SEM QMPF20J315SEN QMPF20J315SEO QMPF20J315SET QMPF20J315SM QMPF20J315SN QMPF20J315SO QMPF20J315ST |
| Locking Style | Eccentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450085021 0883450085038 0883450085052 0883450085069 0883450085076 0883450085083 0883450085090 0883450085106 0883450155847 0883450156578 0883450250788 0883450251204 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension R | 0.36 in9.1 mm |
| Dimension S | 4.590 in116.60 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| B-1012 | 0.015 / 0.034 | 0.6250 / 0.8125 / 0.750 | 5/8 | 15.875 / 0.6250 | 20.638 / 0.8125 | 5.25 |
| K8X11X10FV | K8X11X10FV | 41000 | 8.000 | 11.000 | 0.63 | 4.11 |
| NH204R | 20 | 1.0 | NH204R | 18000 | 15000 | 47 |
| 7306CDT FY | 30 | 1.1 | 7306CDT FY | 17000 | 13000 | 72 |
| 22260R | 5.0 | 740 | 550 | 22260R | 540 | 412 |
| 15106/245 | 19.050 | 26.988 | 0.80 | 15106/245 | 8600 | 6400 |
| UCCX06D1 | UCCX06D1 | M8x1 | 30 | 17.5 | 2.5 | UCX06D1 |
| 23960CAME4 | 23960CAME4 | 38.20 | 420 | 3.5 | 5.2 | 3.4 |
| BA 3220Z | 50.800 | BA 3220Z | 128.0 | 50.800 | 60.325 | 46600 |
| QVVPG26V115S | 3.90 | 2.62 | 136 lb61.70 Kg | 0883450076067 0883450076074 0883450287470 0883450287494 0883450288996 0883450289016 0883450290517 08 | 0.0050 in0.127 mm | 115 mm |
