Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block
- QVSN16V075S

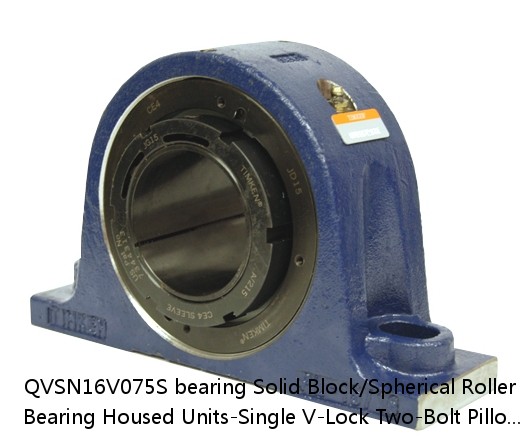

QVSN16V075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block
QVSN16V075S PDF download| Price： | enquiry |
| Model Number： | QVSN16V075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 46.0 lb20.9 Kg |
| UPC Code： | 0883450147675 0883450147682 0883450147712 0883450147729 0883450177450 0883450177894 0883450205061 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVSN16V075SB QVSN16V075SC QVSN16V075SEB QVSN16V075SEC QVSN16V075SEM QVSN16V075SEN QVSN16V075SEO QVSN16V075SET QVSN16V075SM QVSN16V075SN QVSN16V075SO QVSN16V075ST QVSN16V075STNG |
| Locking Style | Single V-Lock |
| Weight | 46.0 lb20.9 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450147675 0883450147682 0883450147712 0883450147729 0883450177450 0883450177894 0883450205061 0883450205443 0883450217484 0883450217866 0883450229906 0883450230285 0883450492300 |
| Dimension A | 3.74 in95.0 mm |
| Dimension B | 7.20 in183 mm |
| Dimension C | 4.17 in106.0 mm |
| Dimension D Max | 10.98 in279.0 mm |
| Dimension D Min | 9.49 in241.0 mm |
| Dimension F | 12.44 in316.0 mm |
| Dimension G | 2.990 in76.00 mm |
| Dimension H | 1.33 in34.0 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 3.58 in91.0 mm |
| Dimension RV | 0.29 in7.4 mm |
| Dimension SV | 3.29 in83.6 mm |
| C0 - Static Load | 62500 lb278 kN |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| LME 304768 U AJ | One side Seal (U) | Steel | LME 304768 U AJ | Steel | - | 30 |
| TAC45-2T85 | 325.0 | 150.0 | 75.6 | 60.3 | 45 | 27.00 |
| K 89310 TN | 3200 | 1600 | 530.000 | 132.000 | 0.000 | 8.000 |
| QAAPXT15A215S | 4.67 | 3.14 | 28 lb12.7 Kg | 0883450952248 0883450952255 0883450952262 0883450952279 0883450952286 0883450952293 0883450952309 08 | 0.0020 in0.051 mm | 2-15/16 in |
| VH150090BNN1K#Z--L+(15) | VH15BN | 15.0 | - | - | - | - |
| QVVPK22V100S | 4.06 | 2.73 | 87 lb39.5 Kg | 0883450077248 0883450077316 0883450209595 0883450209748 0883450222020 0883450222174 0883450234511 08 | 0.0030 in0.076 mm | 100 mm |
| HA310 | 0.32 Kg | MB10 | KM10 | 42.00 mm | M50x1.5 | 70 mm |
| QVPN11V200S | 4.40 | 2.95 | 17.0 lb7.7 Kg | 0883450145190 0883450145480 0883450151207 0883450151351 0883450161886 0883450162098 0883450181334 08 | 0.0015 in0.038 mm | 2 in |
| QVVMC20V308S | 4.24 | 2.85 | 32 lb14.5 Kg | 0883450070843 0883450070911 0883450210454 0883450210607 0883450222877 0883450223027 0883450235372 08 | 0.0030 in0.076 mm | 3-1/2 in |
| HR30307C | 0.60 | _ | 35 | 2.0 | 1.5 | 2.0 |
