Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
- QAAPXT15A215S

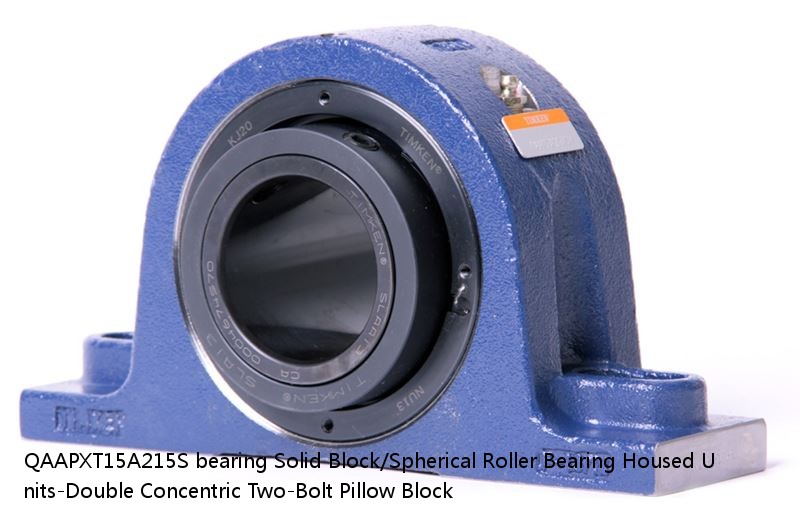

QAAPXT15A215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
QAAPXT15A215S PDF download| Price： | enquiry |
| Model Number： | QAAPXT15A215S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450952248 0883450952255 0883450952262 0883450952279 0883450952286 0883450952293 0883450952309 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPXT15A215SB QAAPXT15A215SC QAAPXT15A215SEB QAAPXT15A215SEC QAAPXT15A215SEM QAAPXT15A215SEN QAAPXT15A215SEO QAAPXT15A215SET QAAPXT15A215SM QAAPXT15A215SN QAAPXT15A215SO QAAPXT15A215ST |
| Locking Style | Double Concentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450952248 0883450952255 0883450952262 0883450952279 0883450952286 0883450952293 0883450952309 0883450952316 0883450952323 0883450952330 0883450952347 0883450952354 |
| Dimension A | 3.50 in88.9 mm |
| Dimension B | 6.84 in173.7 mm |
| Dimension C | 4.29 in109 mm |
| Dimension D Max | 10.44 in265.2 mm |
| Dimension D Min | 9.06 in230.1 mm |
| Dimension F | 13.000 in330.20 mm |
| Dimension G | 2.980 in75.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 3.86 in98.0 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RAA | 0.88 in22.4 mm |
| Dimension SAA | 4.74 in120.4 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HM804842/10 | 27.783 | 44.450 | 2.4 | 0.8 | 4400 | 3300 |
| 23088KYMBW906A | 2.97 | 4.53 | 3.04 | 680 | 590 | 5.000 mm0.200 in |
| QMTU18J080S | 4.31 | 2.90 | 44 lb20.00 Kg | 0883450103374 0883450103381 0883450103404 0883450103411 0883450103428 0883450103435 0883450103442 08 | 0.0030 in0.076 mm | 80 mm |
| SAF 23040K 7/1/4 | LOR 160 | Triple Ring Seal | SAF040K x 7-1/4 | 14.5625 in | SAF23040K7-1/4 | 4.25 in |
| 463/500A | 330 | 500 | 4.0 | 7.5 | 463/500A | 830 |
| 581D/572A | 2.49 | 1.67 | 3.0881 in78.438 mm | 575 | 0.130 in3.3 mm | 0.060 in1.50 mm |
| 23168RHA | 5.0 | 23168RHA | 640 | 480 | 580 | 449 |
| 22340EJW33W45AW800C4 | 1.98 | 3.01 | 2.02 | 22340CJW33W45AW800C4 | 1200 | 1000 |
| QMPR18J304S | 4.31 | 2.90 | 49.0 lb22.2 Kg | 0883450090629 0883450090636 0883450090650 0883450090667 0883450090674 0883450090681 0883450090698 08 | 0.0030 in0.076 mm | 3-1/4 in |
| QAPR18A304S | 4.31 | 2.90 | 49.0 lb22.2 Kg | 0883450333726 0883450333733 0883450333740 0883450333757 0883450333764 0883450333771 0883450333788 08 | 0.0030 in0.076 mm | 3-1/4 in |
