Double V-Lock Solid-Block Housed Units

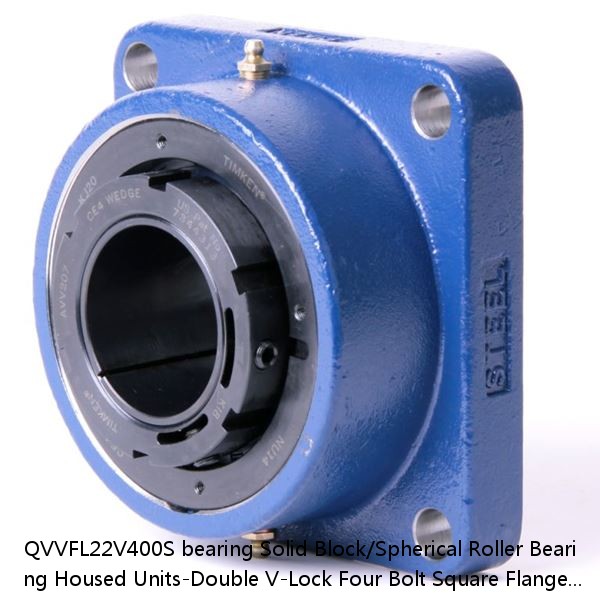

QVVFL22V400S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVFL22V400S
Weight：	3.80
Bearing Number：	2.55
Housing Construction：	55 lb24.90 Kg
UPC Code：	0883450180580 0883450180771 0883450180962 0883450181044 0883450181235 0883450181426 0883450211796 08
Shaft Size Type：	0.0030 in0.076 mm

Engineering Group	Mounted Bearing
Bearing Number	22222
Shaft Size	4 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVFL22V400SB QVVFL22V400SC QVVFL22V400SEB QVVFL22V400SEC QVVFL22V400SEM QVVFL22V400SEN QVVFL22V400SEO QVVFL22V400SET QVVFL22V400SM QVVFL22V400SN QVVFL22V400SO QVVFL22V400ST
Locking Style	Double V-Lock
Weight	55 lb24.90 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450180580 0883450180771 0883450180962 0883450181044 0883450181235 0883450181426 0883450211796 0883450212175 0883450224215 0883450224598 0883450236638 0883450237017
Dimension BC	10.75 in273.1 mm
Dimension C	5.5 in139.7 mm
Dimension D	9.040 in229.60 mm
Dimension E	7.60 in193.0 mm
Dimension F	9.500 in241.3 mm
Dimension H	1.50 in38.1 mm
Dimension J (Bolt Size)	1 in24 mm
Dimension L Exp	4.68 in118.9 mm
Dimension L Fix	4.6 in116.8 mm
Dimension N	4.120 in104.60 mm
Dimension RVV	0.39 in9.9 mm
Dimension SVV	4.99 in126.7 mm
C - Dynamic Load (Basic)	125000 lb555 kN
C0 - Static Load	147000 lb653 kN
e - Geometry Factor	0.26
Y1 - Geometry Factor	2.55
Y2 - Geometry Factor	3.80
Oil Lubrication - M/N Seal	900 rpm
Oil Lubrication - T Seal	1700 rpm
Oil Lubrication - B/C/O Seal	600 rpm
Grease Lubrication - M/N Seal	900 rpm
Grease Lubrication - T Seal	1200 rpm
Grease Lubrication - B/C/O Seal	600 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0053
Eng Internal Radial Clearance - Max	0.0067
Pre Install Clearance Min	0.0043 in0.109 mm
Pre Install Clearance Max	0.0055 in0.140 mm

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
SAF 22526 4/3/8	LOR 116	Triple Ring Seal	SAF526 x 4-3/8	11.5625 in	SAF225264-3/8	14.6250 in
6015/2RS/C3	0.6 Kg	1.100 mm	20.000 mm	115.000 mm	8700 rpm	6000 rpm
FNL 510 B + 2210 K + H 310	FNL 510 B + 2210 K + H 31...	179.000	FNL 510 B	60.000	160.000	45.000
230/800CAME4	230/800CAME4	870.00	1150	3.2	4.7	3.1
405853	405853	590.000	30.000	50.000	585.000	570.000
29492EM	396.5 Kg874.2 lb	380 rpm	101.50 mm3.996 in	147.80 mm5.819 in	206.00 mm8.110 in	31700 kN7120000 lbf
22214EAE4	22214EAE4	1.58	125	2.9	4.3	2.8
24152KEJW33W45A	1.78	2.7	1.82	24152KCJW33W45A	580	540
24780R/20	22.225	41.275	3.60	24780R/20	6900	5200
23236KEJW33C2	2.07	3.15	2.11	23236KCJW33C2	1200	1100
