Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
- QVVF14V208S

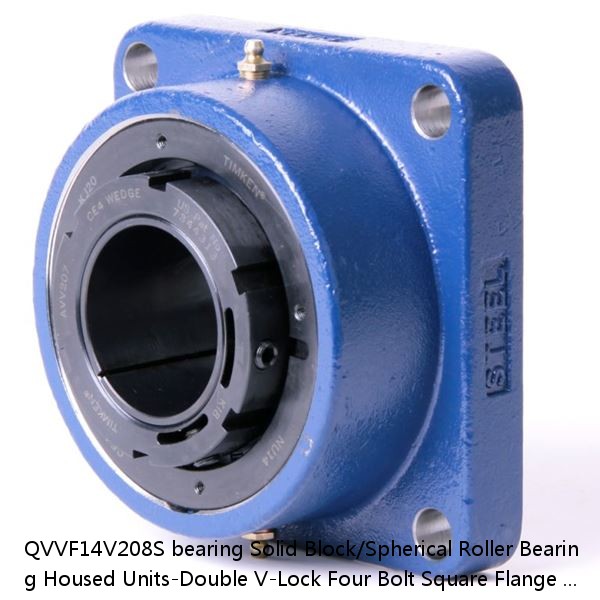

QVVF14V208S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
QVVF14V208S PDF download| Price： | enquiry |
| Model Number： | QVVF14V208S |
| Weight： | 4.22 |
| Bearing Number： | 2.83 |
| Housing Construction： | 17.0 lb7.7 Kg |
| UPC Code： | 0883450064712 0883450064743 0883450064811 0883450178532 0883450178723 0883450178914 0883450210881 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 2-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVF14V208SB QVVF14V208SC QVVF14V208SEB QVVF14V208SEC QVVF14V208SEM QVVF14V208SEN QVVF14V208SEO QVVF14V208SET QVVF14V208SM QVVF14V208SN QVVF14V208SO QVVF14V208ST |
| Locking Style | Double V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450064712 0883450064743 0883450064811 0883450178532 0883450178723 0883450178914 0883450210881 0883450211260 0883450223300 0883450223683 0883450235808 0883450236188 |
| Dimension BC | 7.6 in193.0 mm |
| Dimension C | 3.7 in94 mm |
| Dimension D | 5.750 in146.10 mm |
| Dimension E | 5.38 in136.7 mm |
| Dimension F | 6.63 in168.4 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L Exp | 3.43 in87.1 mm |
| Dimension L Fix | 3.35 in85.1 mm |
| Dimension N | 2.850 in72.40 mm |
| Dimension RVV | 0.63 in16 mm |
| Dimension SVV | 3.99 in101.3 mm |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| C0 - Static Load | 52000 lb231 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.83 |
| Y2 - Geometry Factor | 4.22 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0037 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| SHR 75 | 125 | 4750 | 34 | M 10x20 | 102.0 | 85 |
| NUP307EG | 35 | 1.1 | 1.5 | 0.490 | 9500 | 7500 |
| NU 1009 ECP/HC5C3 | 13000 | 12000 | 6.300 | 52.000 | 44.600 | NU 1009 ECP/HC5C3 |
| 7222BDT FY | 110 | 2.1 | 7222BDT FY | 3000 | 2200 | 200 |
| NUP215E | 75 | 1.5 | 1.5 | NUP215E | 1.410 | 5 500 |
| KT 162420 | 16 | KT 162420 | 23.5 | 16 | 24 | 18500 |
| BK 1015 | BK 1015 | 20000 | 18000 | 1.020 | 9.000 | 6.600 |
| 6304/2RZ | 0.140 Kg | 1.100 mm | 15.000 mm | 52.000 mm | 20000 rpm | 13000 rpm |
| 46T32234JR/152 | 192 | 170 | 1.5 | 4.0 | 46T32234JR/152 | 310 |
| NUP2344 | 220 | 5.0 | 5.0 | NUP2344 | 116.000 | 1 400 |
