Type E Tapered Roller Bearing Housed Units

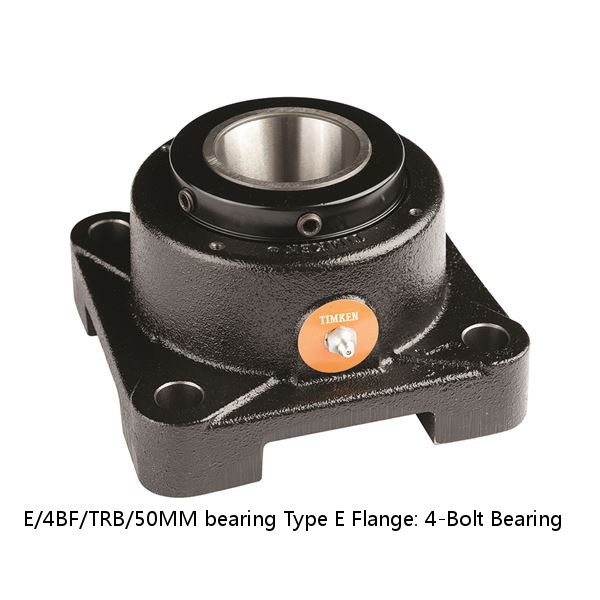

E/4BF/TRB/50MM bearing | Type E Flange: 4-Bolt Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/4BF/TRB/50MM
Weight：	3.18
Bearing Number：	2.64
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	12 lb

Shaft Size	1.969 in50 mm
Shaft Size Type	Metric
Weight	12 lb
UPC Code	053893544014
Dimension B	3-1/2 in
Dimension L	5-5/8 in
Dimension A	3-3/32 in
Dimension J	4-3/8 in
Dimension A₂	1/8 in
Bolt Diameter	1/2 in
Dimension A₁	1-3/16 in
Dimension D ¹	4-7/16 in
Dimension d₁	3-7/16 in
e	0.33
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	2.64
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	3.18
K Factor	1.83
C₉₀ Dynamic Load Rating²	10300 lb
C₀ Static Load Rating	43000 lb
F_a-max Maximum Permissible Thrust Load³	2590 lb
F_r-max Maximum Allowable Slip Fit Radial Load⁴	8400 lb
Max. Speed⁵	3050 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
