Type E Tapered Roller Bearing Housed Units
- Type E Pillow Block: 4-Bolt Base Bearing
- E/P4B/TRB/3 15/16

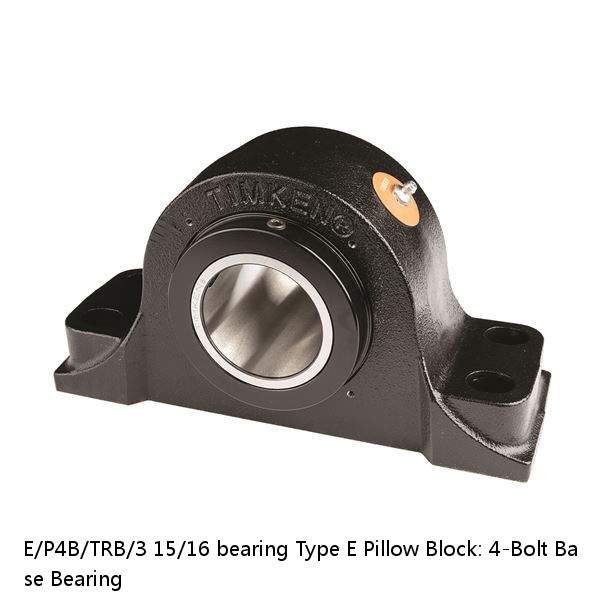

E/P4B/TRB/3 15/16 bearing | Type E Pillow Block: 4-Bolt Base Bearing
Price: | enquiry |
Model Number: | E/P4B/TRB/3 15/16 |
Weight: | 2.14 |
Bearing Number: | 1.77 |
Housing Construction: | 0.7 |
UPC Code: | 0.87 |
Shaft Size Type: | 71.000 lb |
Shaft Size | 3.9375 in |
Shaft Size Type | Imperial |
Weight | 71.000 lb |
UPC Code | 053893601816 |
Dimension B | 6-1/4 in |
Dimension L | 15-1/4 in |
Dimension A | 4-1/2 in |
Dimension J Min. | 12-1/4 in |
Dimension J Max. | 12-3/4 in |
Bolt Diameter | 3/4 in |
Dimension N | 7/8 in |
Dimension N1 | 1-1/8 in |
Dimension N2 | 2-1/4 in |
Dimension H1 | 2-7/16 in |
Dimension H2 | 8-1/2 in |
Dimension d1 | 6-1/16 in |
Dimension H | 4-1/4 in |
e | 0.49 |
X (if Fa/Fr ≤ e) | 0.87 |
Y (if Fa/Fr ≤ e) | 1.77 |
X (if Fa/Fr > e) | 0.7 |
Y (if Fa/Fr > e) | 2.14 |
K Factor | 1.23 |
C90 Dynamic Load Rating1 | 26900 lb |
C0 Static Load Rating | 154000 lb |
Fa-max Maximum Permissible Thrust Load2 | 6908 lb |
Fr-max Maximum Allowable Slip Fit Radial Load3 | 22000 lb |
Max. Speed4 | 1530 rpm |
Note | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
220x260x20 HDS1 R | 220.0000 | 260.000 | 220x260x20 HDS1 R | R | HDS1 | 20.000 |
6026/2RS/C3 | 3.15 Kg | 2.000 mm | 33.000 mm | 200.000 mm | 5900 rpm | 4100 rpm |
HSR15YR1SS+160L (G20g20, PB1021B) | No connection | HSR15YR | 20.00 | - | - | - |
CKRF4-06-0050A-0-A0 | CKRF4 | - | - | - | A | - |
7316 BEGAP | 5000 | 4.5 | 118 | 143 | 7316 BEGAP | 80.000 |
6224ZZX | 120 | 2.1 | 6224ZZX | 2900 | 215 | 6.65 |
628/2RS | 0.0170 Kg | 0.300 mm | 8.000 mm | 24.000 mm | 37000 rpm | 31000 rpm |
QAAFXP26A500S | 3.61 | 2.43 | 115 lb52.2 Kg | 0883450301664 0883450301671 0883450301688 0883450301695 0883450301701 0883450301718 0883450301725 08 | 0.0050 in0.127 mm | 5 in |
2215 ETN9 | 6300 | 9000 | 22.000 | 58.500 | 2215 ETN9 | 130.000 |
6004 | 0.070 Kg | 0.600 mm | 12.000 mm | 42.000 mm | 25000 rpm | 17000 rpm |
