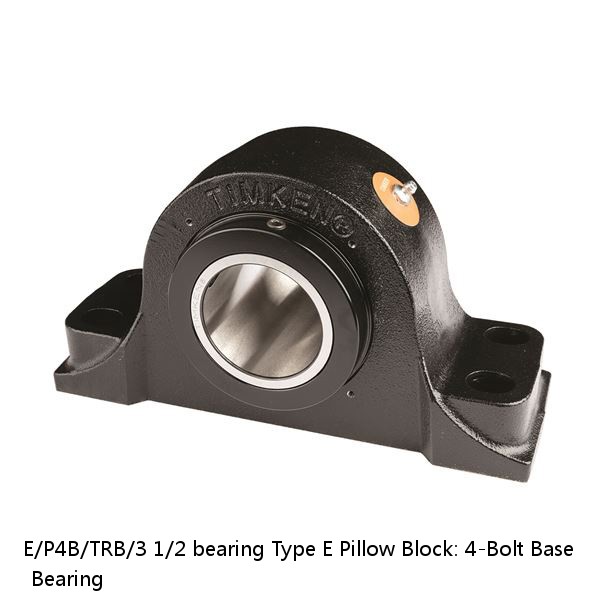

Type E Tapered Roller Bearing Housed Units
- Type E Pillow Block: 4-Bolt Base Bearing
- E/P4B/TRB/3 1/2
E/P4B/TRB/3 1/2 bearing | Type E Pillow Block: 4-Bolt Base Bearing
Price: | enquiry |
Model Number: | E/P4B/TRB/3 1/2 |
Weight: | 2.07 |
Bearing Number: | 1.71 |
Housing Construction: | 0.7 |
UPC Code: | 0.87 |
Shaft Size Type: | 44 lb |
Shaft Size | 3.5 in |
Shaft Size Type | Imperial |
Weight | 44 lb |
UPC Code | 053893601632 |
Dimension B | 5 in |
Dimension L | 13-1/2 in |
Dimension A | 4-1/2 in |
Dimension J Min. | 10-3/4 in |
Dimension J Max. | 11-1/4 in |
Bolt Diameter | 3/4 in |
Dimension N | 15/16 in |
Dimension N1 | 1-3/16 in |
Dimension N2 | 2-3/8 in |
Dimension H1 | 2-1/4 in |
Dimension H2 | 7-1/2 in |
Dimension d1 | 5-17/32 in |
Dimension H | 3-3/4 in |
e | 0.50 |
X (if Fa/Fr ≤ e) | 0.87 |
Y (if Fa/Fr ≤ e) | 1.71 |
X (if Fa/Fr > e) | 0.7 |
Y (if Fa/Fr > e) | 2.07 |
K Factor | 1.19 |
C90 Dynamic Load Rating1 | 19600 lb |
C0 Static Load Rating | 108600 lb |
Fa-max Maximum Permissible Thrust Load2 | 5181 lb |
Fr-max Maximum Allowable Slip Fit Radial Load3 | 16000 lb |
Max. Speed4 | 1640 rpm |
Note | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu |
