Type E Tapered Roller Bearing Housed Units
- Type E Pillow Block: 4-Bolt Base Bearing
- E/P4B/TRB/80MM/ECC

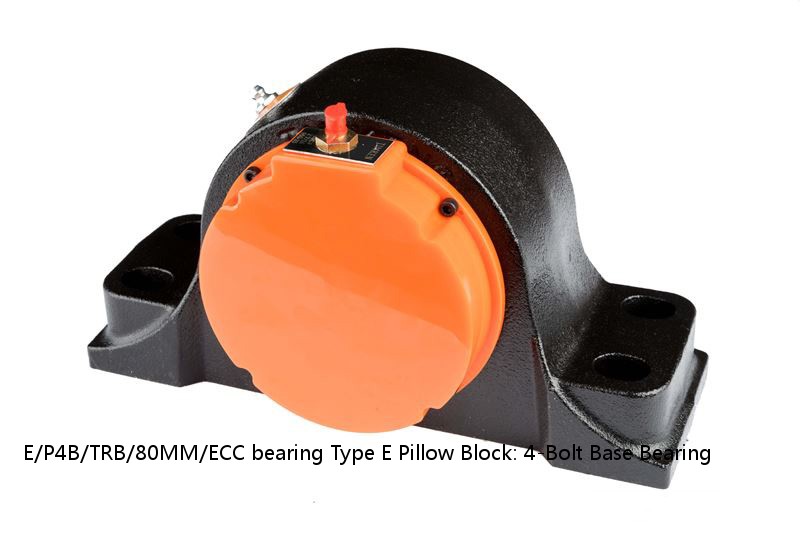

E/P4B/TRB/80MM/ECC bearing | Type E Pillow Block: 4-Bolt Base Bearing
Price: | enquiry |
Model Number: | E/P4B/TRB/80MM/ECC |
Weight: | 2.07 |
Bearing Number: | 1.71 |
Housing Construction: | 0.7 |
UPC Code: | 0.87 |
Shaft Size Type: | 47 lb |
Shaft Size | 3.15 in80 mm |
Shaft Size Type | Metric |
Weight | 47 lb |
UPC Code | 0883450504454 |
Type E Closed Cover Number | EUC-H |
Dimension B | 5 in |
Dimension L | 13-1/2 in |
Dimension A | 4-1/2 in |
Dimension J Min. | 10-3/4 in |
Dimension J Max. | 11-1/4 in |
Bolt Diameter | 3/4 in |
Dimension N | 15/16 in |
Dimension N1 | 1-3/16 in |
Dimension N2 | 2-3/8 in |
Dimension H1 | 2-1/4 in |
Dimension H2 | 7-1/2 in |
Dimension d1 | 5-17/32 in |
Dimension H | 3-3/4 in |
Dimension Ac | 5.7 in |
Dimension d2 | 6.7 in |
e | 0.50 |
X (if Fa/Fr ≤ e) | 0.87 |
Y (if Fa/Fr ≤ e) | 1.71 |
X (if Fa/Fr > e) | 0.7 |
Y (if Fa/Fr > e) | 2.07 |
K Factor | 1.19 |
C90 Dynamic Load Rating1 | 19600 lb |
C0 Static Load Rating | 108600 lb |
Fa-max Maximum Permissible Thrust Load2 | 5181 lb |
Fr-max Maximum Allowable Slip Fit Radial Load3 | 16000 lb |
Max. Speed4 | 1640 rpm |
Note | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
29338E | 78 | 308.0 | 190 | 4.0 | 25.5 | 1100 |
6320/Z/C3 | 6.980 Kg | 3.000 mm | 47.000 mm | 215.000 mm | 6200 rpm | 4400 rpm |
52387D/52639 | 3.5311 in89.690 mm | 52000 | 0.030 in0.80 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 6.3750 in161.925 mm |
NU1088 | 440 | 6.0 | 6.0 | NU1088 | 105.000 | 1 100 |
SILQG 40 ES | 176.00 | 100.00 | 95.000 | 40.000 | 34.000 | 40.000 |
XAA32008X/Y32008X | 19.000 mm0.7480 in | 32008X | 1.02 mm0.04 in | 3.560 mm0.14 in | 23.8 | METRIC |
RLM2420 | 0.50 | RLM2420 | 0.0330 | 15000 | 24 | 31 |
KV48x53x22.3XS | KV48x53x22.3XS | 0.042 | 8500 | 5500 | 48 | 53 |
NH300099EMN1PCZ1AL+(9.5) | NH30EM | 9.5 | - | - | - | - |
FIR-202517-1 | 20 | FIR-202517-1 | 0.023 | 25 | - | 17 |
