Type E Tapered Roller Bearing Housed Units

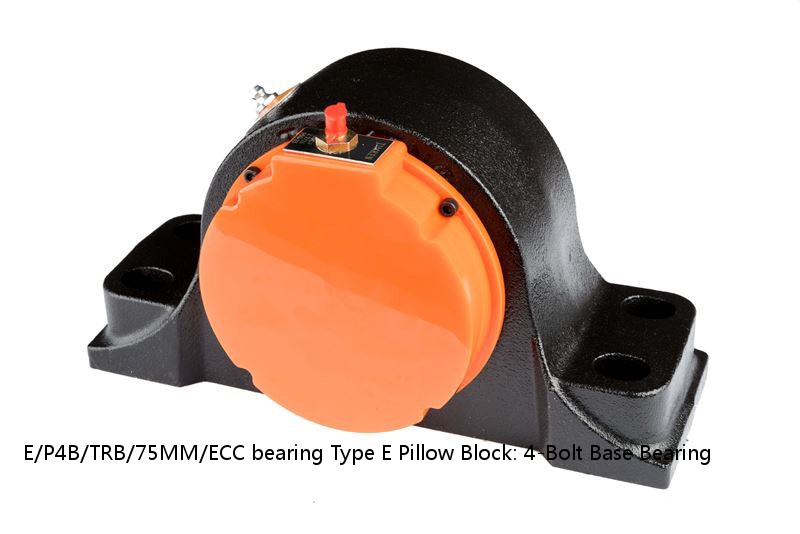

E/P4B/TRB/75MM/ECC bearing | Type E Pillow Block: 4-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P4B/TRB/75MM/ECC
Weight：	2.26
Bearing Number：	1.87
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	29 lb

Shaft Size	2.953 in75 mm
Shaft Size Type	Metric
Weight	29 lb
UPC Code	0883450504447
Type E Closed Cover Number	EUC-G
Dimension B	4-1/2 in
Dimension L	12 in
Dimension A	4 in
Dimension J Min.	9-3/16 in
Dimension J Max.	9-13/16 in
Bolt Diameter	5/8 in
Dimension N	11/16 in
Dimension N₁	1 in
Dimension N₂	2-1/8 in
Dimension H₁	1-7/8 in
Dimension H₂	6-1/4 in
Dimension d₁	4-23/32 in
Dimension H	3-1/8 in
Dimension A_c	5.2 in
Dimension d₂	5.65 in
e	0.46
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.87
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.26
K Factor	1.30
C₉₀ Dynamic Load Rating¹	12300 lb
C₀ Static Load Rating	61200 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	10000 lb
Max. Speed⁴	2060 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
