Type E Tapered Roller Bearing Housed Units

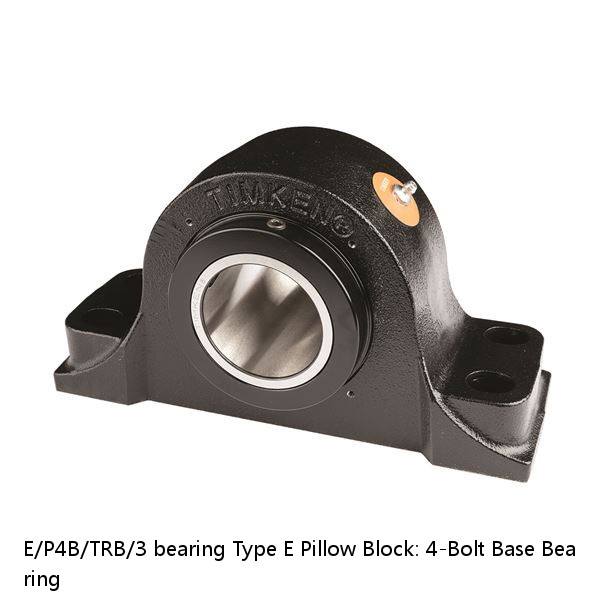

E/P4B/TRB/3 bearing | Type E Pillow Block: 4-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P4B/TRB/3
Weight：	2.26
Bearing Number：	1.87
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	28 lb

Shaft Size	3 in
Shaft Size Type	Imperial
Weight	28 lb
UPC Code	053893607627
Dimension B	4-1/2 in
Dimension L	12 in
Dimension A	4 in
Dimension J Min.	9-3/16 in
Dimension J Max.	9-13/16 in
Bolt Diameter	5/8 in
Dimension N	11/16 in
Dimension N₁	1 in
Dimension N₂	2-1/8 in
Dimension H₁	1-7/8 in
Dimension H₂	6-1/4 in
Dimension d₁	4-23/32 in
Dimension H	3-1/8 in
e	0.46
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.87
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.26
K Factor	1.30
C₉₀ Dynamic Load Rating¹	12300 lb
C₀ Static Load Rating	61200 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	10000 lb
Max. Speed⁴	2060 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
