Type E Tapered Roller Bearing Housed Units

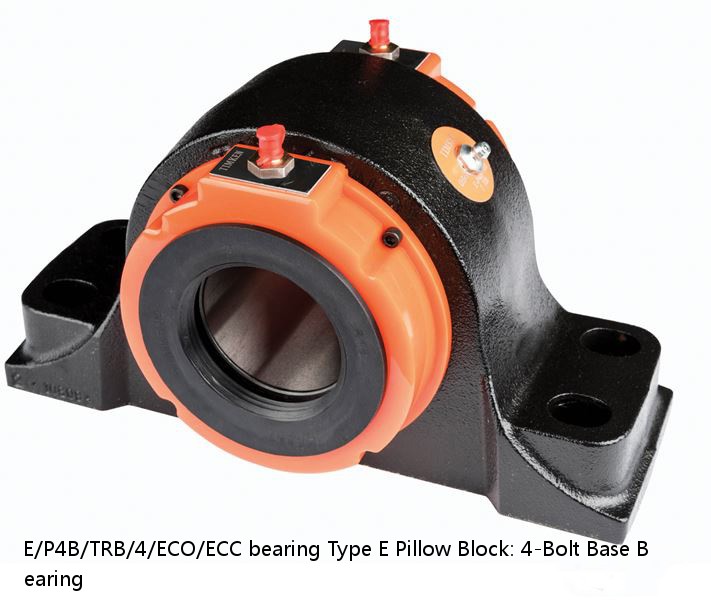

E/P4B/TRB/4/ECO/ECC bearing | Type E Pillow Block: 4-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P4B/TRB/4/ECO/ECC
Weight：	2.14
Bearing Number：	1.77
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	71.000 lb

Shaft Size	4 in
Shaft Size Type	Imperial
Weight	71.000 lb
UPC Code	0883450506021
Type E Open Cover Number	EUDR-4
Type E Closed Cover Number	EUC-I
Dimension B	6-1/4 in
Dimension L	15-1/4 in
Dimension A	4-1/2 in
Dimension J Min.	12-1/4 in
Dimension J Max.	12-3/4 in
Bolt Diameter	3/4 in
Dimension N	7/8 in
Dimension N₁	1-1/8 in
Dimension N₂	2-1/4 in
Dimension H₁	2-7/16 in
Dimension H₂	8-1/2 in
Dimension d₁	6-1/16 in
Dimension H	4-1/4 in
Dimension A_c	7.25 in
Dimension d₂	7.43 in
e	0.49
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.77
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.14
K Factor	1.23
C₉₀ Dynamic Load Rating¹	26900 lb
C₀ Static Load Rating	154000 lb
F_a-max Maximum Permissible Thrust Load²	6908 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	22000 lb
Max. Speed⁴	1530 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
