Tapered Roller Bearings - TDI (Tapered Double Inner)

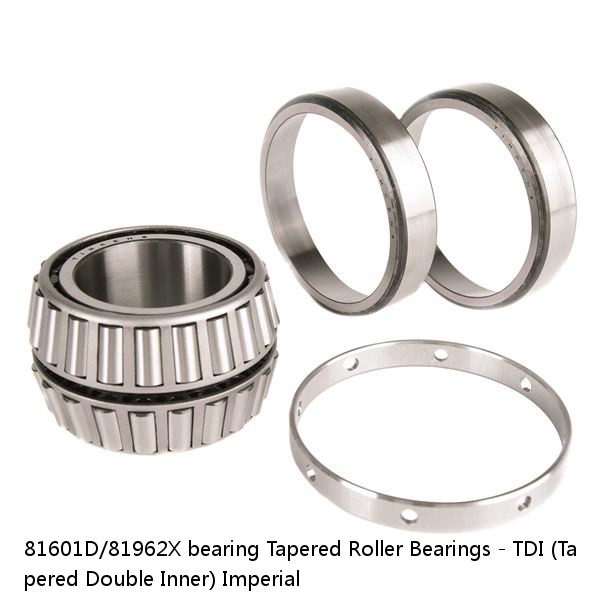

81601D/81962X bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

81601D/81962X PDF download

Price：	enquiry
Model Number：	81601D/81962X
Series：	3.4274 in87.056 mm
r - Cup Backface "To Clear" Radius²：	81000
Design Units：	0.060 in1.50 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	81000
Cone Part Number	81601D
Cup Part Number	81962X
Design Units	Imperial
Bearing Weight	32.800 lb14.90 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	6.0000 in152.400 mm
D - Cup Outer Diameter	9.6250 in244.475 mm
B - Double Cone Width	3.6250 in92.075 mm
C - Cup Width	1.6250 in41.275 mm
T - Bearing Width across Cups	3.4274 in87.056 mm
R - Cone Frontface "To Clear" Radius¹	0.060 in1.50 mm
r - Cup Backface "To Clear" Radius²	0.130 in3.3 mm
da - Cone Frontface Backing Diameter	6.54 in166.1 mm
Db - Cup Backface Backing Diameter	8.86 in225.00 mm
Ab - Cage-Cone Frontface Clearance	0.03 in0.8 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	23400 lbf104000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	157000 lbf699000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	40800 lbf181000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	14100 lbf62700 N
K - Factor⁷	1.66
e - ISO Factor⁸	0.35
Y1 - ISO Factor⁹	1.92
Y2 - ISO Factor¹⁰	2.86
G1 - Heat Generation Factor (Roller-Raceway)¹¹	413
G2 - Heat Generation Factor (Rib-Roller End)	98.4
Cg - Geometry Factor¹²	0.125
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
