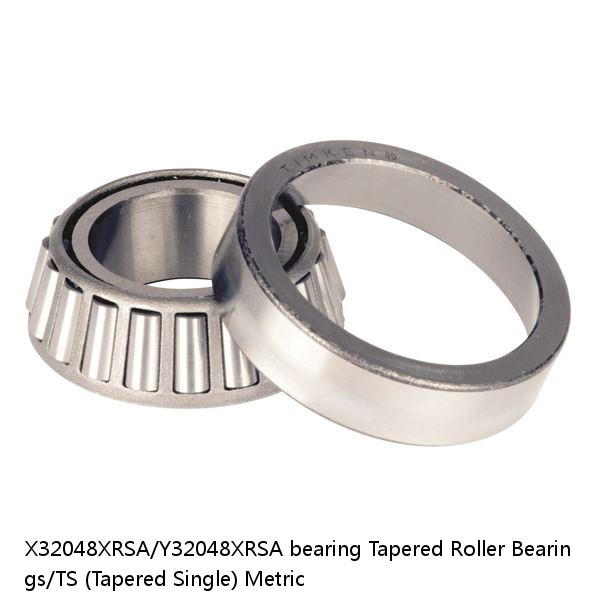

Tapered Roller Bearings - TS (Tapered Single)

X32048XRSA/Y32048XRSA bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

Buy Now
Contact Now

X32048XRSA/Y32048XRSA PDF download

Price：	enquiry
Model Number：	X32048XRSA/Y32048XRSA
Series：	76 mm2.9921 in
r - Cup Backface "To Clear" Radius²：	M249700
Design Units：	3.05 mm0.12 in
Db - Cup Backface Backing Diameter：	4.060 mm0.16 in
da - Cone Frontface Backing Diameter：	1485.4

Series	M249700
Cone Part Number	X32048XRSA
Cup Part Number	Y32048XRSA
Design Units	METRIC
Bearing Weight	25.800 Kg56.80 lb
Cage Type	Stamped Steel
d - Bore	240 mm9.4488 in
D - Cup Outer Diameter	360 mm14.1732 in
B - Cone Width	76 mm2.9921 in
C - Cup Width	57 mm2.2441 in
T - Bearing Width	76 mm2.9921 in
R - Cone Backface "To Clear" Radius¹	4.060 mm0.16 in
r - Cup Backface "To Clear" Radius²	3.05 mm0.12 in
da - Cone Frontface Backing Diameter	260.1 mm10.24 in
db - Cone Backface Backing Diameter	264.92 mm10.43 in
Da - Cup Frontface Backing Diameter	343.41 mm13.52 in
Db - Cup Backface Backing Diameter	336.04 mm13.23 in
Ab - Cage-Cone Frontface Clearance	4.1 mm0.16 in
Aa - Cage-Cone Backface Clearance	7.6 mm0.3 in
a - Effective Center Location³	-8.4 mm-0.33 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	217000 N48700 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	835000 N188000 lbf
C0 - Static Radial Rating	1630000 N366000 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	123000 N27700 lbf
K - Factor⁷	1.76
e - ISO Factor⁸	0.33
Y - ISO Factor⁹	1.8
G1 - Heat Generation Factor (Roller-Raceway)	1485.4
G2 - Heat Generation Factor (Rib-Roller End)	158.7
Cg - Geometry Factor¹⁰	0.148
