Tapered Roller Bearings - TS (Tapered Single)

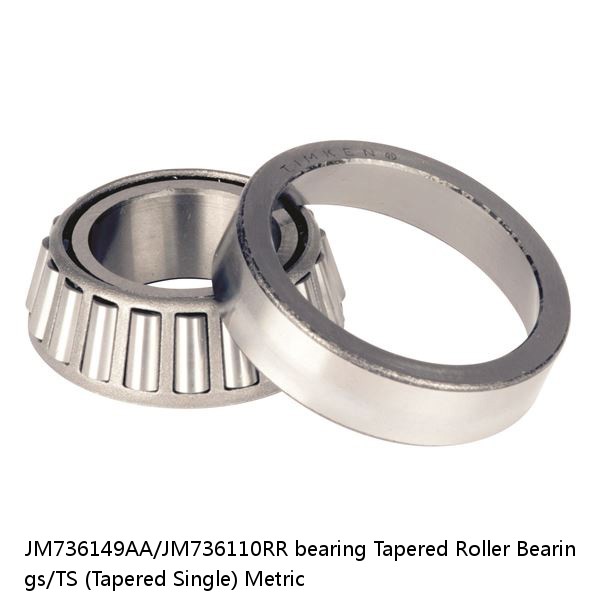

JM736149AA/JM736110RR bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	JM736149AA/JM736110RR
Series：	47.000 mm1.8504 in
r - Cup Backface "To Clear" Radius²：	M736100
Design Units：	2.54 mm0.1 in
Db - Cup Backface Backing Diameter：	7.620 mm0.300 in
da - Cone Frontface Backing Diameter：	589.4

Series	M736100
Cone Part Number	JM736149AA
Cup Part Number	JM736110RR
Design Units	METRIC
Bearing Weight	6.6 Kg14.6 lb
Cage Type	Stamped Steel
d - Bore	180 mm7.0866 in
D - Cup Outer Diameter	250 mm9.8425 in
B - Cone Width	45 mm1.7717 in
C - Cup Width	37.000 mm1.4567 in
T - Bearing Width	47.000 mm1.8504 in
R - Cone Backface "To Clear" Radius¹	7.620 mm0.300 in
r - Cup Backface "To Clear" Radius²	2.54 mm0.1 in
da - Cone Frontface Backing Diameter	189.99 mm7.48 in
db - Cone Backface Backing Diameter	207.01 mm8.15 in
Da - Cup Frontface Backing Diameter	243.08 mm9.57 in
Db - Cup Backface Backing Diameter	231.90 mm9.13 in
Ab - Cage-Cone Frontface Clearance	4.8 mm0.19 in
Aa - Cage-Cone Backface Clearance	2.8 mm0.11 in
a - Effective Center Location³	8.9 mm0.35 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	106000 N23800 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	409000 N92000 lbf
C0 - Static Radial Rating	786000 N177000 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	87200 N19600 lbf
K - Factor⁷	1.22
e - ISO Factor⁸	0.48
Y - ISO Factor⁹	1.25
G1 - Heat Generation Factor (Roller-Raceway)	589.4
G2 - Heat Generation Factor (Rib-Roller End)	128
Cg - Geometry Factor¹⁰	0.123
