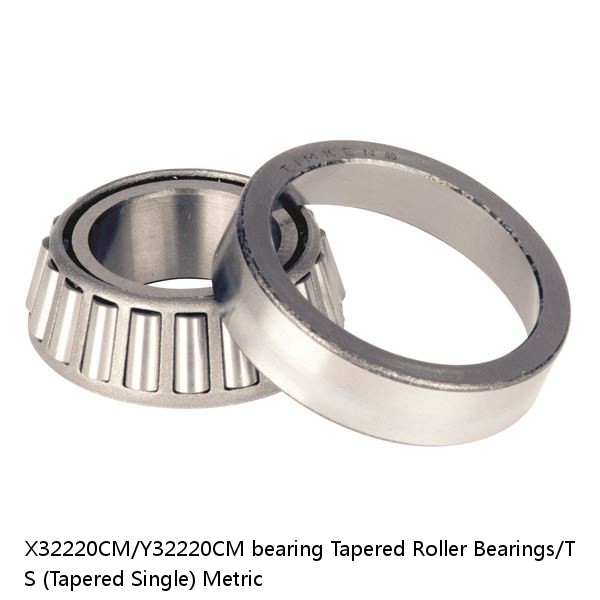

X32220CM/Y32220CM bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
X32220CM/Y32220CM PDF download| Price： | enquiry |
| Model Number： | X32220CM/Y32220CM |
| Series： | 49.000 mm1.9291 in |
| r - Cup Backface "To Clear" Radius2： | Obsolete |
| Design Units： | 2.54 mm0.1 in |
| Db - Cup Backface Backing Diameter： | 3.050 mm0.12 in |
| da - Cone Frontface Backing Diameter： | 210.7 |
| Series | Obsolete |
| Cone Part Number | X32220CM |
| Cup Part Number | Y32220CM |
| Design Units | METRIC |
| Bearing Weight | 5 Kg11 lb |
| Cage Type | Stamped Steel |
| d - Bore | 100 mm3.937 in |
| D - Cup Outer Diameter | 180 mm7.0866 in |
| B - Cone Width | 46.000 mm1.8110 in |
| C - Cup Width | 39 mm1.5354 in |
| T - Bearing Width | 49.000 mm1.9291 in |
| R - Cone Backface "To Clear" Radius1 | 3.050 mm0.12 in |
| r - Cup Backface "To Clear" Radius2 | 2.54 mm0.1 in |
| da - Cone Frontface Backing Diameter | 113.03 mm4.45 in |
| db - Cone Backface Backing Diameter | 121.92 mm4.8 in |
| Da - Cup Frontface Backing Diameter | 171.96 mm6.77 in |
| Db - Cup Backface Backing Diameter | 162.05 mm6.38 in |
| Ab - Cage-Cone Frontface Clearance | 5.33 mm0.21 in |
| Aa - Cage-Cone Backface Clearance | 5.33 mm0.21 in |
| a - Effective Center Location3 | -7.4 mm-0.29 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 102000 N22900 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 393000 N88400 lbf |
| C0 - Static Radial Rating | 521000 N117000 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 73300 N16500 lbf |
| K - Factor7 | 1.39 |
| e - ISO Factor8 | 0.42 |
| Y - ISO Factor9 | 1.43 |
| G1 - Heat Generation Factor (Roller-Raceway) | 210.7 |
| G2 - Heat Generation Factor (Rib-Roller End) | 50 |
| Cg - Geometry Factor10 | 0.101 |
