Tapered Roller Bearings - TS (Tapered Single)

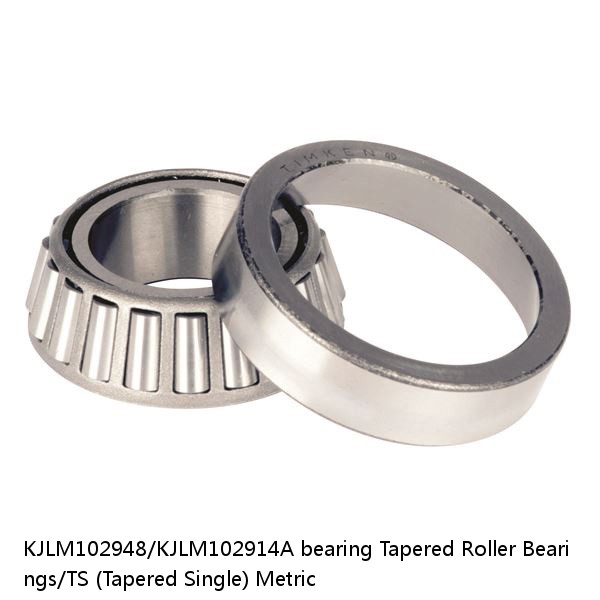

KJLM102948/KJLM102914A bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	KJLM102948/KJLM102914A
Series：	19.600 mm0.7717 in
r - Cup Backface "To Clear" Radius²：	LM102900
Design Units：	1.27 mm0.050 in
Db - Cup Backface Backing Diameter：	3.560 mm0.14 in
da - Cone Frontface Backing Diameter：	31.1

Series	LM102900
Cone Part Number	KJLM102948
Cup Part Number	KJLM102914A
Design Units	METRIC
Bearing Weight	0.30 Kg0.8 lb
Cage Type	Stamped Steel
d - Bore	45.000 mm1.7717 in
D - Cup Outer Diameter	75.000 mm2.9528 in
B - Cone Width	19.800 mm0.7795 in
C - Cup Width	15.800 mm0.6220 in
T - Bearing Width	19.600 mm0.7717 in
R - Cone Backface "To Clear" Radius¹	3.560 mm0.14 in
r - Cup Backface "To Clear" Radius²	1.27 mm0.050 in
da - Cone Frontface Backing Diameter	50.04 mm1.97 in
db - Cone Backface Backing Diameter	55.88 mm2.2 in
Da - Cup Frontface Backing Diameter	71.88 mm2.83 in
Db - Cup Backface Backing Diameter	68.07 mm2.68 in
Ab - Cage-Cone Frontface Clearance	1.5 mm0.06 in
Aa - Cage-Cone Backface Clearance	0.3 mm0.01 in
a - Effective Center Location³	-4.8 mm-0.19 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	15900 N3580 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	61500 N13800 lbf
C0 - Static Radial Rating	81800 N18400 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	8330 N1870 lbf
K - Factor⁷	1.91
e - ISO Factor⁸	0.31
Y - ISO Factor⁹	1.97
G1 - Heat Generation Factor (Roller-Raceway)	31.1
G2 - Heat Generation Factor (Rib-Roller End)	18.8
Cg - Geometry Factor¹⁰	0.0744

No.	Series	r - Cup Backface "To Clear" Radius²	Design Units	Db - Cup Backface Backing Diameter	da - Cone Frontface Backing Diameter	D - Cup Outer Diameter
GS 110200	110	GS 110200	2060.0	110	200	2.0
NUP2328	140	4.0	4.0	36.800	2200	1800
MFJLT-3028	21600	MFJLT-3028	75.0	6300	30	40
HJ-405228IR-314028	49.213	2.03	IR-314028	HJ-405228	6800	63.500
24052EJW33C4	2.07	3.15	2.12	24052CJW33C4	940	830
33889/22	27.783	50.800	3.60	33889/22	5400	4100
NA 4903	17	NA 4903	39.0	22	30	11700
7310CDF FY	50	1.0	2.0	11000	8000	7310CDFFY
24072RR	5.0	24072RR	660	500	540	465
7203BDT	17	0.30	0.6	0.140	15000	11000
