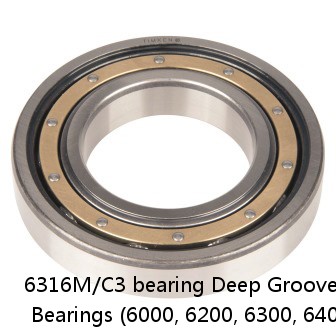

6316M/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6316M/C3 PDF download| Price： | enquiry |
| Model Number： | 6316M/C3 |
| Weight： | 4.48 Kg |
| Radius Rs min： | 2.100 mm |
| Outside Ring Width B： | 39.000 mm |
| Outside Diameter D： | 170.000 mm |
| Features： | 7500 rpm |
| Clearance | C3 |
| Bore Size d | 80 mm |
| Features | Open With Brass Cage |
| Bearing Type | Standard DGBB |
| Weight | 4.48 Kg |
| Outside Diameter D | 170.000 mm |
| Outside Ring Width B | 39.000 mm |
| Radius Rs min | 2.100 mm |
| Cr - Dynamic Load Rating | 123 kN |
| C0r - Static Load Rating | 86.5 kN |
| Grease Reference Speed | 5200 rpm |
| Oil Reference Speed | 7500 rpm |
