SYFWR 20 YTHR Bearing | Loyal
SYFWR 20 YTHR PDF download| SYFWR 20 YTHR interchange SKF SYFWR 20 YTHR | |
| SYFWR 20 YTHR cross reference SKF SYFWR 20 YTHR | |
| SYFWR 20 YTHR Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | SYFWR 20 YTHR |

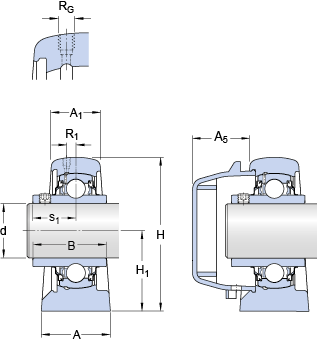

| L | 66.5 mm |
| A | 29 mm |
| J | 50.8 mm |
| H | 63.5 mm |
| B | 31 mm |
| d | 20 mm |
| Weight | 0.47 kg |
| Housing | SYFWR 504 Y |
| Category | Bearings |
| Inventory | 0.0 |
| Size (mm) | 20x29x23 |
| Width (mm) | 23 |
| Thread - G | M10 |
| H1 | 33.3 mm |
| Product Group | M06110 |
| A1 | 23 mm |
| A5 | 24.5 mm |
| A1 | 23 mm |
| s1 | 18.3 mm |
| A5 | 25.2 mm |
| RG | 1/4-28 UNF |
| s1 | 18.3 mm |
| H1 | 33.3 mm |
| R1 | 1.5 mm |
| R1 | 1.5 mm |
| Rα | 45 ° |
| Bearing number | SYFWR 20 YTHR |
| Limiting speed | 5000 r/min |
| Housing material | Stainless steel |
| Manufacturer Name | SKF |
| Mass bearing unit | 0.47 kg |
| Weight / Kilogram | 0 |
| Bore Diameter (mm) | 20 |
| Rα | 45 ° |
| Outer Diameter (mm) | 29 |
| Minimum Buy Quantity | N/A |
| Bearing - YAR 204-2RFGR/HV | YAR 2042RFGR/HV |
| RG - 1/4-28 UNF | 1/428 UNF |
| Basic dynamic load rating C | 10.8 kN |
| Thread length G1 | 13 mm |
| Thread for attachment bolts G | M10 |
| Thread length - G1 | 13 mm |
| Basic dynamic load rating - C | 10.8 kN |
| Thread grub screw G2 | M6x0.75 |
| Fatigue load limit Pu | 0.28 kN |
| Calculation factor - f0 | 13 |
| Fatigue load limit - Pu | 0.28 kN |
| Hexagonal key size for grub screw N | 3 mm |
| Hexagonal key size for grub screw - H | 3 mm |
| Basic static load rating C0 | 6.55 kN |
| Basic static load rating - C0 | 6.6 kN |
| Recommended tightening torque for grub screw | 4 N·m |
