FYT 1.3/4 TF Bearing | Loyal
FYT 1.3/4 TF PDF download| FYT 1.3/4 TF interchange SKF FYT 1.3/4 TF | |
| FYT 1.3/4 TF cross reference SKF FYT 1.3/4 TF | |
| FYT 1.3/4 TF Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | FYT 1.3/4 TF |

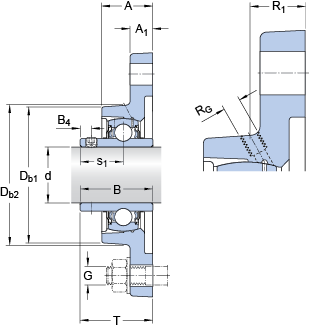

| T | 54.2 mm |
| d | 44.45 mm |
| A | 39 mm |
| B | 49.2 mm |
| J | 148.5 mm |
| H | 16 mm |
| L | 111 mm |
| Bore | 1.75 Inch | 44.45 Millimeter |
| Noun | Bearing |
| Seals | M Seal |
| UNSPSC | 31171501 |
| Category | Flange Block |
| Inventory | 0.0 |
| Size (mm) | 44.45x39x14 |
| Width (mm) | 14 |
| Weight / LBS | 4.2 |
| Bolt Spacing | 5.844 Inch | 148.438 Millimeter |
| J6 | 120.5 mm |
| s1 | 30.2 mm |
| N4 | 2 mm |
| DN | 6.579 mm |
| A1 | 14 mm |
| B4 | 8 mm |
| R1 | 24 mm |
| Inch - Metric | Inch |
| J7 | 18 mm |
| Housing Style | 2 Bolt Flange Block |
| Product Group | M06110 |
| Keyword String | Flanged |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Open End | Has Flinger | Y Bearing |
| Db1 | 102 mm |
| Relubricatable | Yes |
| Mounting Bolts | 9/16 Inch |
| Bearing number | FYT 1.3/4 TF |
| Db2 | 111 mm |
| SWN | 11.112 mm |
| Limiting speed | 4300 r/min |
| Mounting Method | Set Screw |
| Rolling Element | Ball Bearing |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Housing Material | Cast Iron |
| Manufacturer URL | http://www.skf.com |
| Long Description | 2 Bolt Flange Block; 1-3/4" Bore; 5.8" Bolt Circle; 5-27/32" Bolt Spacing; 1 Piece Solid; Set Screw Mount; Cast Iron; Ball Bearing; 1-15/16" Length Thru Bore; Relubricatable; M Sea |
| Manufacturer Name | SKF |
| Mass bearing unit | 1.7 kg |
| Weight / Kilogram | 1.91 |
| Bore Diameter (mm) | 44,45 |
| Insert Part Number | YAR 209-112-2F |
| Pilot Configuration | No Pilot |
| Outer Diameter (mm) | 39 |
| Rα | 45 ° |
| Minimum Buy Quantity | N/A |
| Housing Configuration | 1 Piece Solid |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Item Number | FYT 1.3/4 TF |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| RG - 1/8-27 NPT | 1/827 NPT |
| GN - 1/8-27 NPT | 1/827 NPT |
| Basic dynamic load rating - C | 33.2 kN |
| Fatigue load limit - Pu | 0.915 kN |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Thread - G2 - 5/16-24 UNF | 5/1624 UNF |
| Hexagonal key size for grub screw - H | 3.969 mm |
| Basic static load rating - C0 | 21.6 kN |
