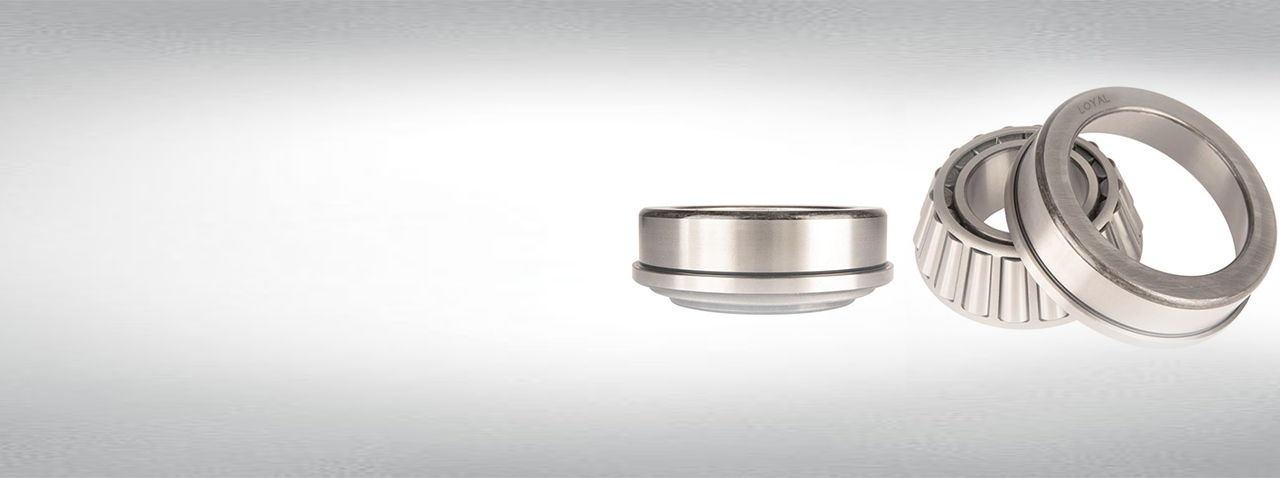

Tapered Roller Bearings - TSF (Tapered Single with Flange)
- Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
- Standard type
- All
1～18/18
- Tapered Roller Bearings - TSF (Tapered Single with Flange)
- Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
- Standard type
- All
| Bearing No. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Series | r - Cup Backface "To Clear" Radius2 | Design Units | Db - Cup Backface Backing Diameter | da - Cone Frontface Backing Diameter | D - Cup Outer Diameter | d - Bore | Cup Part Number | Cone Part Number | |
| 1.45 | 32.000 mm1.2598 in | 10 mm0.39... | 33210 | 1.5 mm0.06 in | 1.5 mm0.06 in | 1.41 | 0.41 | METRIC | |
| 1.48 | 38.000 mm1.4961 in | 16.000 mm... | 33212 | 1.5 mm0.06 in | 0.800 mm0.03 in | 1.44 | 0.4 | METRIC | |
| 1.57 | 26.000 mm1.0236 in | 10 mm0.39... | 33109 | 1.5 mm0.06 in | 1.5 mm0.06 in | 1.52 | 0.38 | METRIC | |
| 1.53 | 20.000 mm0.7874 in | 8.000 mm0... | 32009X | 1 mm0.04 in | 3 mm0.12 in | 1.49 | 0.39 | METRIC | |
| 1.53 | 20.000 mm0.7874 in | 8.000 mm0... | 32009X | 1 mm0.04 in | 1 mm0.04 in | 1.49 | 0.39 | METRIC | |
| 1.21 | 24.000 mm0.9449 in | 10.500 mm... | JP9000 | 2 mm0.08 in | 2.000 mm0.080 in | 1.18 | 0.49 | METRIC | |
| 1.33 | 24.000 mm0.9449 in | 10.500 mm... | JP8000 | 2 mm0.08 in | 2.000 mm0.080 in | 1.29 | 0.45 | METRIC | |
| 1.27 | 21.000 mm0.8268 in | 8.500 mm0... | JP6000 | 2 mm0.08 in | 2.000 mm0.080 in | 1.24 | 0.47 | METRIC | |
| 1.3 | 21.000 mm0.8268 in | 8.500 mm0... | JP7000 | 2 mm0.08 in | 2.000 mm0.080 in | 1.27 | 0.46 | METRIC | |
| 1.19 | 29.000 mm1.1417 in | 13.000 mm... | JP14000 | 3 mm0.12 in | 3 mm0.12 in | 1.16 | 0.5 | METRIC | |
| 1.27 | 29.000 mm1.1417 in | 13.000 mm... | JP13000 | 3 mm0.12 in | 3 mm0.12 in | 1.24 | 0.47 | METRIC | |
| 1.27 | 24.000 mm0.9449 in | 10.500 mm... | JP10000 | 3 mm0.12 in | 3 mm0.12 in | 1.24 | 0.47 | METRIC | |
| 1.27 | 24.000 mm0.9449 in | 10.500 mm... | JP10000 | 3 mm0.12 in | 3 mm0.12 in | 1.24 | 0.47 | METRIC | |
| 1.35 | 30.000 mm1.1811 in | 11.557 mm... | M716600 | 2.5 mm0.1 in | 3 mm0.12 in | 1.31 | 0.44 | METRIC | |
| 1.45 | 36.000 mm1.4173 in | 16.350 mm... | M624600 | 1.5 mm0.06 in | 3.600 mm0.14 in | 1.41 | 0.41 | METRIC | |
| 1.31 | 28.000 mm1.1024 in | 12.500 mm... | LM722900 | 3 mm0.12 in | 3.300 mm0.13 in | 1.27 | 0.46 | METRIC | |
| 1.31 | 28.575 mm1.125 in | 12.000 mm... | L730600 | 3.3 mm0.130 in | 3.300 mm0.13 in | 1.27 | 0.46 | METRIC | |
| 1.31 | 25.40 mm1.000 in | 11.350 mm... | L724300 | 3.3 mm0.130 in | 3.300 mm0.13 in | 1.27 | 0.46 | METRIC | |
