Deep Groove Ball Bearings

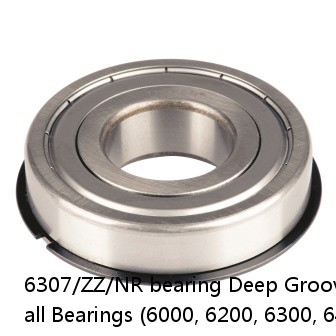

6307/ZZ/NR bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)

Buy Now
Contact Now

Price：	enquiry
Model Number：	6307/ZZ/NR
Weight：	0.45 Kg
Radius Rs min：	1.500 mm
Outside Ring Width B：	21.000 mm
Outside Diameter D：	80.000 mm
Features：	13000 rpm

Clearance	C0 (Normal)
Bore Size d	35 mm
Features	Shields With Snap Ring
Bearing Type	Standard DGBB
Weight	0.45 Kg
Outside Diameter D	80.000 mm
Outside Ring Width B	21.000 mm
Radius Rs min	1.500 mm
Snap Ring Diameter D2 max	86.600 mm
Snap Ring Width f max	1.700 mm
Cr - Dynamic Load Rating	33.4 kN
C0r - Static Load Rating	19.2 kN
Grease Reference Speed	9300 rpm
Oil Reference Speed	13000 rpm

No.	Weight	Radius Rs min	Outside Ring Width B	Outside Diameter D	Features	Cr - Dynamic Load Rating
MCH06040H10K	MCH06040H10K	400	10	-	-	-
7409DB FY	45	2.0	7409DB FY	6000	4200	120
QVPG11V115S	4.40	2.95	19 lb8.6 Kg	0883450147118 0883450147354 0883450152396 0883450152549 0883450174626 0883450174855 0883450183604 08	0.0015 in0.038 mm	1-15/16 in
30228	45.750	2600	1900	58.500	570.000	451.000
230/530YMBW25W507C08C3	3.07	4.68	3.14	530	460	5.000 mm0.200 in
21306RH	30	1.1	7000	5200	21306RH	72
FWF-707620	FWF-707620	62.0	70.00	76.00	3600	35500
4T-LM67048/LM67010	31.750	1.3	*	4T-LM67048/LM67010	0,18	59.131
AOH32/800G	401.00 Kg	Tr850x7	1:12	15 mm	G1/4	550.00 mm
AR 65	+0.19/0	1.5	2.3	AR 65	67.3	66.5
