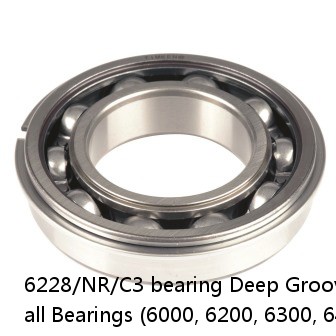

6228/NR/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6228/NR/C3 PDF download| Price： | enquiry |
| Model Number： | 6228/NR/C3 |
| Weight： | 7.45 Kg |
| Radius Rs min： | 3.000 mm |
| Outside Ring Width B： | 42.000 mm |
| Outside Diameter D： | 250.000 mm |
| Features： | 4900 rpm |
| Clearance | C3 |
| Bore Size d | 140 mm |
| Features | Snap Ring |
| Bearing Type | Standard DGBB |
| Weight | 7.45 Kg |
| Outside Diameter D | 250.000 mm |
| Outside Ring Width B | 42.000 mm |
| Radius Rs min | 3.000 mm |
| Snap Ring Diameter D2 max | 262.000 mm |
| Snap Ring Width f max | 3.500 mm |
| Cr - Dynamic Load Rating | 166 kN |
| C0r - Static Load Rating | 150 kN |
| Grease Reference Speed | 3400 rpm |
| Oil Reference Speed | 4900 rpm |
