Tapered Roller Bearings - TS (Tapered Single)

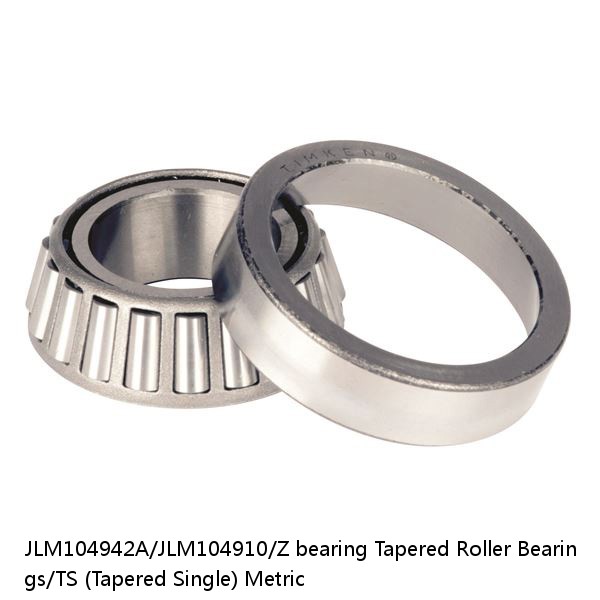

JLM104942A/JLM104910/Z bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	JLM104942A/JLM104910/Z
Series：	21.500 mm0.8465 in
r - Cup Backface "To Clear" Radius²：	LM104900
Design Units：	0.51 mm0.02 in
Db - Cup Backface Backing Diameter：	0.4 mm0.015 in
da - Cone Frontface Backing Diameter：	19.3

Series	LM104900
Cone Part Number	JLM104942A
Cup Part Number	JLM104910-Z
Design Units	METRIC
Bearing Weight	0.5 Kg1 lb
Cage Type	Stamped Steel
d - Bore	48.600 mm1.9134 in
D - Cup Outer Diameter	82.000 mm3.2283 in
B - Cone Width	21.500 mm0.8465 in
C - Cup Width	17.000 mm0.6693 in
T - Bearing Width	21.500 mm0.8465 in
R - Cone Backface "To Clear" Radius¹	0.4 mm0.015 in
r - Cup Backface "To Clear" Radius²	0.51 mm0.02 in
da - Cone Frontface Backing Diameter	55.12 mm2.17 in
db - Cone Backface Backing Diameter	54.10 mm2.13 in
Da - Cup Frontface Backing Diameter	78.00 mm3.11 in
Db - Cup Backface Backing Diameter	75.95 mm2.99 in
Ab - Cage-Cone Frontface Clearance	2.8 mm0.11 in
Aa - Cage-Cone Backface Clearance	0.3 mm0.01 in
a - Effective Center Location³	-5.3 mm-0.21 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	25000 N5610 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	96300 N21700 lbf
C0 - Static Radial Rating	104000 N23400 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	13000 N2930 lbf
K - Factor⁷	1.91
e - ISO Factor⁸	0.31
Y - ISO Factor⁹	1.97
G1 - Heat Generation Factor (Roller-Raceway)	38.8
G2 - Heat Generation Factor (Rib-Roller End)	19.3
Cg - Geometry Factor¹⁰	0.0801
