- Thrust Spherical Roller Bearings-Type TSR
- 29426EJ

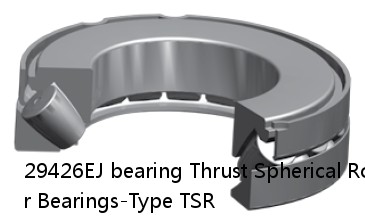

29426EJ bearing | Thrust Spherical Roller Bearings-Type TSR
29426EJ PDF download| Price： | enquiry |
| Model Number： | 29426EJ |
| Weight： | 20.9 Kg46.0 lb |
| Thermal Speed Rating： | 1400 rpm |
| T3 - Cup Width： | 40.90 mm1.610 in |
| T1 - Cage Position： | 72.70 mm2.862 in |
| T - Total Width： | 85.00 mm3.346 in |
| UPC Code | 87796224629 |
| Weight | 20.9 Kg46.0 lb |
| Bearing Type | Thrust Spherical Roller Bearings - TSR |
| d - Bore | 130 mm5.118 in |
| D - Outside Diameter | 270.000 mm10.630 in |
| d1 - Cone Outside Diameter | 234.40 mm9.228 in |
| D1 - Cup Bore | 184.50 mm7.264 in |
| E - Shoulder Diameter - Housing (Max) | 197.00 mm7.756 in |
| H - Shoulder Diameter - Shaft (Min) | 213.00 mm8.386 in |
| r - Fillet Radius | 3.00 mm0.12 in |
| S - Dimension | 81.00 mm3.189 in |
| T - Total Width | 85.00 mm3.346 in |
| T1 - Cage Position | 72.70 mm2.862 in |
| T3 - Cup Width | 40.90 mm1.610 in |
| T4 - Cone Width | 54.00 mm2.126 in |
| Static Load Rating | 3870 kN871000 lbf |
| Dynamic Load Rating | 1600 kN359000 lbf |
| Thermal Speed Rating | 1400 rpm |
| No. | Weight | Thermal Speed Rating | T3 - Cup Width | T1 - Cage Position | T - Total Width | Static Load Rating |
|---|---|---|---|---|---|---|
| 81212 TN | 2800 | 1400 | 465.000 | 137.000 | 26.000 | 11.000 |
| UCFA207J | A-1/4-28UNF | 35 / Normal-duty(2) | 35 | Normal-duty(2) | - | - |
| GE 260ES | 260 | 1.1 | 1.1 | 325.0 | 267.0 | 288.0 |
| J-2824 | 0.136 / 0.300 | 1.7500 / 2.1250 / 1.500 | 1 3/4 | 44.450 / 1.7500 | 53.975 / 2.1250 | 18.9 |
| NUP228E | 140 | 3.0 | 3.0 | NUP228E | 8.730 | 2 800 |
| K285x300x50 | K285x300x50 | 1.97 | 1400 | 950 | 285 | 300 |
| KT 162214 | 16 | KT 162214 | 11.5 | 16 | 22 | 11600 |
| BNF4512-5RRG1+139LC0 | 139.000 | BNF4512-5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| RE45025 | RE45025 | - | - | - | - | - |
| 7230 FY | 150 | 1.100 | 3.000 | 3300 | 2700 | 7230FY |
