- Thrust Spherical Roller Bearings-Type TSR
- 29320EJ

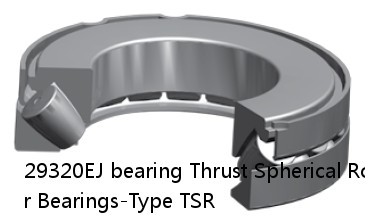

29320EJ bearing | Thrust Spherical Roller Bearings-Type TSR
29320EJ PDF download| Price： | enquiry |
| Model Number： | 29320EJ |
| Weight： | 7.7 Kg3.5 lb |
| Thermal Speed Rating： | 2000 rpm |
| T3 - Cup Width： | 20.50 mm0.807 in |
| T1 - Cage Position： | 35.40 mm1.394 in |
| T - Total Width： | 42 mm1.654 in |
| UPC Code | 87796358140 |
| Weight | 7.7 Kg3.5 lb |
| Bearing Type | Thrust Spherical Roller Bearings - TSR |
| d - Bore | 100 mm3.937 in |
| D - Outside Diameter | 170.000 mm6.693 in |
| d1 - Cone Outside Diameter | 152.30 mm5.996 in |
| D1 - Cup Bore | 127.50 mm5.020 in |
| E - Shoulder Diameter - Housing (Max) | 134.00 mm5.276 in |
| H - Shoulder Diameter - Shaft (Min) | 141.00 mm5.551 in |
| r - Fillet Radius | 1.5 mm0.06 in |
| S - Dimension | 58.00 mm2.284 in |
| T - Total Width | 42 mm1.654 in |
| T1 - Cage Position | 35.40 mm1.394 in |
| T3 - Cup Width | 20.50 mm0.807 in |
| T4 - Cone Width | 26.20 mm1.032 in |
| Static Load Rating | 1240 kN278000 lbf |
| Dynamic Load Rating | 462 kN104000 lbf |
| Thermal Speed Rating | 2000 rpm |
| No. | Weight | Thermal Speed Rating | T3 - Cup Width | T1 - Cage Position | T - Total Width | Static Load Rating |
|---|---|---|---|---|---|---|
| 3.5x29.8A | 3.5x29.8A | 2.250 | 29.8 | 3.5 | - | - |
| LG6L+100L | LG6L | - | - | - | - | - |
| SV264 | 22264B | M42 | 49 | 84 | 1110 | 930 |
| 7E-HMK1725CT | 7E-HMK1725CT | 0.03 | 14000 | 9500 | IR12x17x25.5 | 17 |
| NU330E | 150 | 4.0 | 4.0 | NU330E | 28.400 | 2 300 |
| SNL 40/530 G + 240/530 | 1330 | SNL 40/530 G + 240/530 | 920 | SNL 40/530 G + 240/530 | 530.000 | 780.000 |
| LM 122130N F OP | None | Stainless | LM 122130N F OP | Plastic | 12 | - |
| CRH 64 VBR | 64.691 | CRH 64 VBR | 4960 | 101.600 | 142000 | 317000 |
| NJ328 | 140 | 4.0 | 4.0 | NJ328 | 21.200 | 2 700 |
| PE070038TRK1PCT---+(4) | 4.0 | PE07TR | - | - | - | - |
