Double Concentric Solid-Block Housed Units

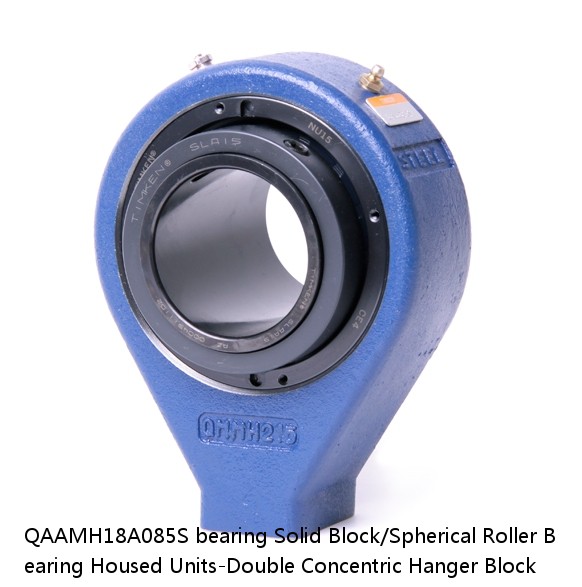

QAAMH18A085S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Hanger Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QAAMH18A085S
Weight：	4.31
Bearing Number：	2.90
Housing Construction：	36 lb16.30 Kg
UPC Code：	0883450413084 0883450413091 0883450413107 0883450413114 0883450413121 0883450413138 0883450413145 08
Shaft Size Type：	1 1/4-7UNC

Engineering Group	Mounted Bearing
Bearing Number	22218
Shaft Size	85 mm
Shaft Size Type	Metric
Housing Construction	Hanger
Locking Style	Double Concentric
Weight	36 lb16.30 Kg
Full Timken Part Number	QAAMH18A085SB QAAMH18A085SC QAAMH18A085SEB QAAMH18A085SEC QAAMH18A085SEM QAAMH18A085SEN QAAMH18A085SEO QAAMH18A085SET QAAMH18A085SM QAAMH18A085SN QAAMH18A085SO QAAMH18A085ST
UPC Code	0883450413084 0883450413091 0883450413107 0883450413114 0883450413121 0883450413138 0883450413145 0883450413152 0883450413169 0883450413176 0883450413183 0883450413190
Dimension A	6.31 in160.3 mm
Dimension B	10.25 in260.4 mm
Dimension C	5.13 in130.3 mm
Dimension D	7.880 in200.20 mm
Dimension E	2.50 in63.5 mm
Dimension F	3.00 in76.2 mm
Dimension G	3.00 in76.2 mm
Dimension L	3.910 in99.30 mm
Dimension M	2.59 in65.8 mm
Dimension RAA	1.27 in32.3 mm
Dimension SAA	5.18 in131.6000 mm
Thread Size J	1 1/4-7UNC
C0 - Static Load	87200 lb388 kN
C - Dynamic Load (Basic)	79700 lb355 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.90
Y2 - Geometry Factor	4.31
Oil Lubrication - M/N Seal	1400 rpm
Oil Lubrication - B/C/O Seal	1000 rpm
Grease Lubrication - M/N Seal	1400 rpm
Grease Lubrication - B/C/O Seal	1000 rpm
Oil Lubrication - T Seal	2400 rpm
Grease Lubrication - T Seal	2000 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0024
Eng Internal Radial Clearance - Max	0.0039
Pre Install Clearance Min	0.0024 in0.060 mm
Pre Install Clearance Max	0.0039 in0.100 mm

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
7916CDB FY	80	1.0	7916CDB FY	9300	7000	110
24038CK30E4	24038CK30E4	23.90	290	2.2	3.2	2.1
NU1088	440	6.0	6.0	NU1088	105.000	1 100
LH650271GLN1KCZ---+(60.5)	LH65GL	60.5	-	-	-	-
KR 52 XB	3.200	27.000	15.700	52.000	KR 52 XB	20.000
TX320M-300/AT4035	TX320M	-	-	-	-	-
WS 81232	WS 81232	160.000	222.000	0.000	15.000	-
LS250073CLN1KCZ1AL+(6.5)	6.5	-	-	-	-	-
QACW15A212S	4.67	3.14	22.00 lb10.00 Kg	0883450324786 0883450324793 0883450324809 0883450324816 0883450324823 0883450324830 0883450324847 08	0.0020 in0.051 mm	2-3/4 in
1322	1322	11.800	240	2.80	4.4	3.00
