Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
- QAMH15A075S

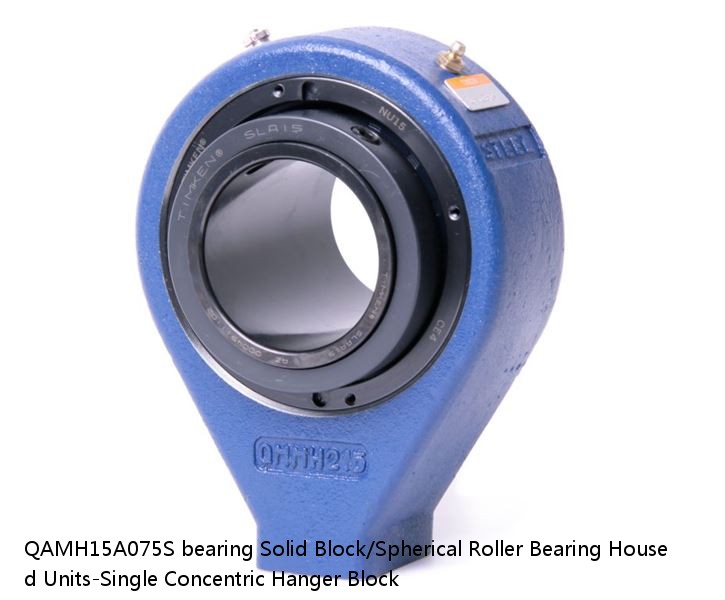

QAMH15A075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
QAMH15A075S PDF download| Price： | enquiry |
| Model Number： | QAMH15A075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450414876 0883450414883 0883450414890 0883450414906 0883450414913 0883450414920 0883450414937 08 |
| Shaft Size Type： | 1-8UNC |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Housing Construction | Hanger |
| Locking Style | Single Concentric |
| Weight | 22.00 lb10.00 Kg |
| Full Timken Part Number | QAMH15A075SB QAMH15A075SC QAMH15A075SEB QAMH15A075SEC QAMH15A075SEM QAMH15A075SEN QAMH15A075SEO QAMH15A075SET QAMH15A075SM QAMH15A075SN QAMH15A075SO QAMH15A075ST |
| UPC Code | 0883450414876 0883450414883 0883450414890 0883450414906 0883450414913 0883450414920 0883450414937 0883450414944 0883450414951 0883450414968 0883450414975 0883450414982 |
| Dimension A | 5.19 in131.8 mm |
| Dimension B | 8.38 in212.9 mm |
| Dimension C | 4.29 in109.0 mm |
| Dimension D | 6.380 in162.10 mm |
| Dimension E | 2.00 in50.8 mm |
| Dimension F | 2.00 in50.8 mm |
| Dimension G | 2.75 in69.9 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension L | 3.620 in91.90 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RA | 0.00 in0.0 mm |
| Dimension SA | 3.62 in91.9000 mm |
| Thread Size J | 1-8UNC |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Float | 0.083 in |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NUP218ET | Standard | 90 | 2.0 | 2.0 | 2.0 | 2.0 |
| LM 254059N F U AJ | One side Seal (U) | Stainless | LM 254059N F U AJ | Plastic | 25 | - |
| 7228 | 140 | 1.10 | 3.0 | 8.780 | 3000 | 2200 |
| SIL 12 E | 25.50 | 10.80 | 35.000 | 12.000 | 8.500 | 10.000 |
| BK 3026 | BK 3026 | 9000 | 8000 | 6.550 | 54.000 | 27.000 |
| QVPG28V125S | 3.98 | 2.67 | 136 lb61.70 Kg | 0883450342988 0883450342995 0883450343008 0883450343015 0883450343022 0883450343039 0883450343046 08 | 0.0050 in0.127 mm | 125 mm |
| 24092YMBW848W8RW80BC6 | 2.32 | 3.53 | 2.37 | 430 | 390 | 5.000 mm0.200 in |
| SNW-126X4-7/16 | HMVC 26E | AN 26 | SNW-126X4-7/16 | 171.577 | 112.713 | 130.000 |
| LME 406280N F UU OP | Both side Seal (UU) | Stainless | LME 406280N F UU OP | Plastic | 40 | - |
| ZSE4F409-28 | A-1/8NPT | ZSE4F409-28 | 1 3/4 | - | - | - |
