Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
- QAMH15A070S

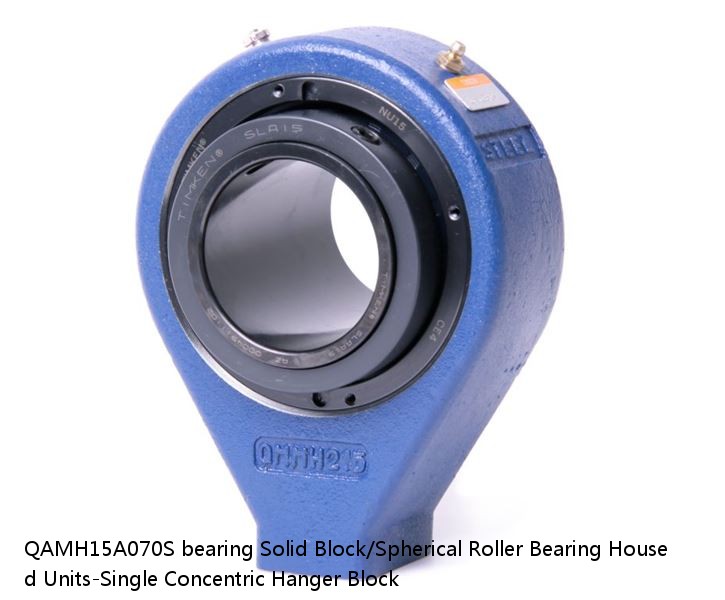

QAMH15A070S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
QAMH15A070S PDF download| Price： | enquiry |
| Model Number： | QAMH15A070S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450414753 0883450414760 0883450414777 0883450414784 0883450414791 0883450414807 0883450414814 08 |
| Shaft Size Type： | 1-8UNC |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Housing Construction | Hanger |
| Locking Style | Single Concentric |
| Weight | 22.00 lb10.00 Kg |
| Full Timken Part Number | QAMH15A070SB QAMH15A070SC QAMH15A070SEB QAMH15A070SEC QAMH15A070SEM QAMH15A070SEN QAMH15A070SEO QAMH15A070SET QAMH15A070SM QAMH15A070SN QAMH15A070SO QAMH15A070ST |
| UPC Code | 0883450414753 0883450414760 0883450414777 0883450414784 0883450414791 0883450414807 0883450414814 0883450414821 0883450414838 0883450414845 0883450414852 0883450414869 |
| Dimension A | 5.19 in131.8 mm |
| Dimension B | 8.38 in212.9 mm |
| Dimension C | 4.29 in109.0 mm |
| Dimension D | 6.380 in162.10 mm |
| Dimension E | 2.00 in50.8 mm |
| Dimension F | 2.00 in50.8 mm |
| Dimension G | 2.75 in69.9 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension L | 3.620 in91.90 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RA | 0.00 in0.0 mm |
| Dimension SA | 3.62 in91.9000 mm |
| Thread Size J | 1-8UNC |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Float | 0.083 in |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7826CDB | 130 | 0.60 | 1.1 | 7826C | 0.91 | 5 800 |
| BNF3606-5RRG1+91LC0 | 91.000 | BNF3606-5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| BH-78 | 0.010 / 0.023 | 0.4375 / 0.6875 / 0.500 | 7/16 | 11.113 / 0.4375 | 17.463 / 0.6875 | 1.95 |
| 812/560 M | 340 | 170 | 20000.000 | 3800.000 | 150.000 | 0.000 |
| AR 39 | +0.16/0 | 1.5 | 2.3 | AR 39 | 40.8 | 40.2 |
| SIL 50 ES | 270.00 | 156.00 | 114.000 | 50.000 | 31.000 | 35.000 |
| 25590/26 | 23.812 | 45.618 | 3.60 | 25590/26 | 6300 | 4800 |
| UCFL201J | A-1/4-28UNF | 12 / Normal-duty(2) | 12 | Normal-duty(2) | UCFL201J | - |
| 22218EAE4 | 22218EAE4 | 3.30 | 160 | 2.9 | 4.3 | 2.8 |
| SIL 6 C | 8.15 | 3.60 | 22.000 | 6.000 | 4.500 | 6.000 |
