Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW13J208S

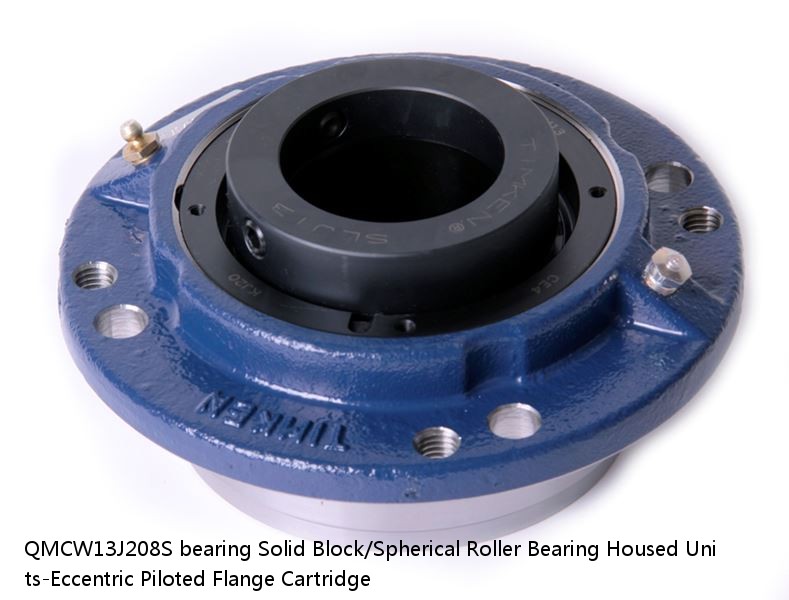

QMCW13J208S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW13J208S PDF download| Price： | enquiry |
| Model Number： | QMCW13J208S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 16 lb7.30 Kg |
| UPC Code： | 0883450062527 0883450062534 0883450062558 0883450062565 0883450062572 0883450062589 0883450062596 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 2-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW13J208SB QMCW13J208SC QMCW13J208SEB QMCW13J208SEC QMCW13J208SEM QMCW13J208SEN QMCW13J208SEO QMCW13J208SET QMCW13J208SM QMCW13J208SN QMCW13J208SO QMCW13J208ST |
| Locking Style | Eccentric |
| Weight | 16 lb7.30 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450062527 0883450062534 0883450062558 0883450062565 0883450062572 0883450062589 0883450062596 0883450062602 0883450166485 0883450167208 0883450258661 0883450259200 |
| Dimension BC | 6.50 in165.1 mm |
| Dimension C | 3.620 in91.90 mm |
| Dimension E | 4.60 in116.8 mm |
| Dimension B Fix | 1.87 in47.5 mm |
| Dimension B Exp | 1.95 in49.5 mm |
| Dimension F | 7.63 in193.8 mm |
| Dimension D | 5.50 in139.7 mm |
| Dimension H | 0.50 in12.7 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension M | 2.13 in54.1 mm |
| Dimension R | 0.17 in4.3 mm |
| Dimension S | 3.37 in85.6 mm |
| Dimension G | 5.500 in139.7 mm |
| Dimension K | 1.24 in31.5 mm |
| Dimension L Exp | 3.63 in92.2 mm |
| Dimension L Fix | 3.55 in90.2 mm |
| Dimension N | 1.69 in42.9 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| UCPH206-18J | A-1/4-28UNF | UCPH206-18J | 1 1/8 | Normal-duty (2) | - | - |
| QVPG20V307S | 4.24 | 2.85 | 70.0 lb31.8 Kg | 0883450051095 0883450206396 0883450206549 0883450218825 0883450218979 0883450231244 0883450231398 08 | 0.0030 in0.076 mm | 3-7/16 in |
| YAK 1 1/4S | 2.985 lb1.3541 Kg | 1.689 in42.90 mm | 157.2 mm6.189 in | 81.8 mm3.220 in | 2530 lbf11300 N | 1 1/4 in31.8 mm |
| 635/ZZ | 0.008 Kg | 0.300 mm | 6.000 mm | 19.000 mm | 45000 rpm | 38000 rpm |
| NA69/32R | 0.60 | NA69/32R | 0.286 | 10000 | 6500 | 52 |
| 23030EJW33C4 | 3.07 | 4.68 | 3.14 | 23030CJW33C4 | 2600 | 2100 |
| 6228/NR | 7.45 Kg | 3.000 mm | 42.000 mm | 250.000 mm | 4900 rpm | 3400 rpm |
| XAA32017X/Y32017X | 29.000 mm1.1417 in | 32017X | 1.52 mm0.06 in | 6.600 mm0.260 in | 109 | METRIC |
| 2220S | 100 | 2220S | 4.530 | 2.1 | 3800 | 3200 |
| E/PF/TRB/40MM | 2.37 | 1.96 | 0.7 | 0.87 | 9.0 lb | 053893778563 |
