Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW11J204S

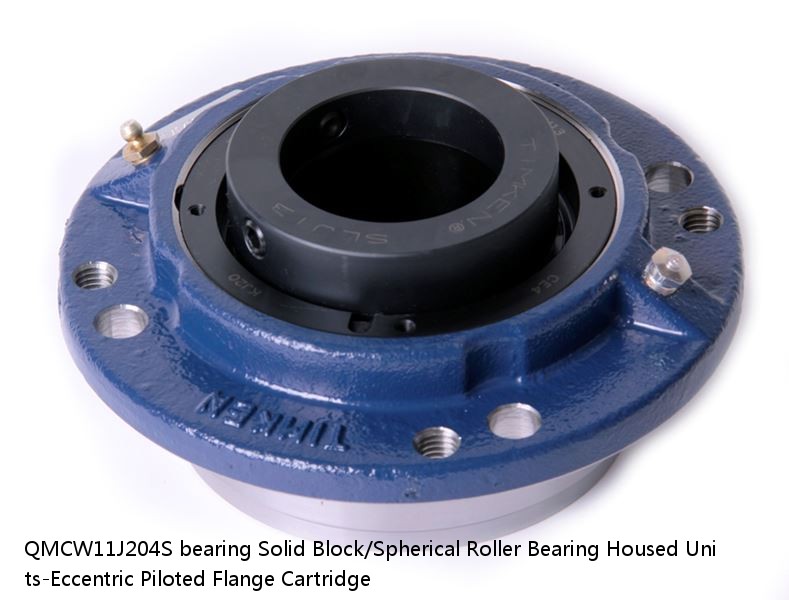

QMCW11J204S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW11J204S PDF download| Price： | enquiry |
| Model Number： | QMCW11J204S |
| Weight： | 4.40 |
| Bearing Number： | 2.95 |
| Housing Construction： | 13 lb5.9 Kg |
| UPC Code： | 0883450062220 0883450062237 0883450062251 0883450062268 0883450062275 0883450062282 0883450062299 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 2-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW11J204SB QMCW11J204SC QMCW11J204SEB QMCW11J204SEC QMCW11J204SEM QMCW11J204SEN QMCW11J204SEO QMCW11J204SET QMCW11J204SM QMCW11J204SN QMCW11J204SO QMCW11J204ST |
| Locking Style | Eccentric |
| Weight | 13 lb5.9 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450062220 0883450062237 0883450062251 0883450062268 0883450062275 0883450062282 0883450062299 0883450062305 0883450166461 0883450167185 0883450258623 0883450259163 |
| Dimension BC | 6.00 in152.4 mm |
| Dimension C | 2.990 in75.90 mm |
| Dimension E | 4.24 in107.7 mm |
| Dimension B Fix | 1.80 in45.7 mm |
| Dimension B Exp | 1.88 in47.8 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension D | 5.00 in127.0 mm |
| Dimension H | 0.56 in14.2 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension M | 1.99 in50.5 mm |
| Dimension R | 0.30 in7.6 mm |
| Dimension S | 3.12 in79.2 mm |
| Dimension G | 5.000 in127.0 mm |
| Dimension K | 1.13 in28.7 mm |
| Dimension L Exp | 3.50 in88.9 mm |
| Dimension L Fix | 3.42 in86.9 mm |
| Dimension N | 1.63 in41.4 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1600 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
