Double V-Lock Solid-Block Housed Units

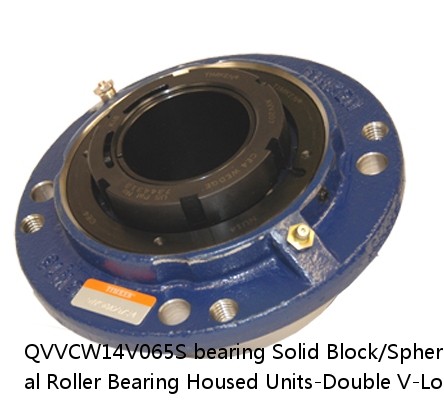

QVVCW14V065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Piloted Flange Cartridge

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVCW14V065S
Weight：	4.32
Bearing Number：	2.90
Housing Construction：	16 lb7.30 Kg
UPC Code：	0883450063517 0883450082341 0883450186148 0883450186339 0883450186520 0883450213936 0883450214315 08
Shaft Size Type：	0.0015 in0.038 mm

Engineering Group	Mounted Bearing
Bearing Number	22214
Shaft Size	65 mm
Shaft Size Type	Metric
Full Timken Part Number	QVVCW14V065SB QVVCW14V065SC QVVCW14V065SEB QVVCW14V065SEC QVVCW14V065SEM QVVCW14V065SEN QVVCW14V065SEO QVVCW14V065SET QVVCW14V065SM QVVCW14V065SN QVVCW14V065SO QVVCW14V065ST
Locking Style	Double V-Lock
Weight	16 lb7.30 Kg
Housing Construction	Piloted Flange Cartridge
UPC Code	0883450063517 0883450082341 0883450186148 0883450186339 0883450186520 0883450213936 0883450214315 0883450226356 0883450226738 0883450238779 0883450239158 0883450980579
Dimension BC	6.50 in165.1 mm
Dimension C	3.700 in94.00 mm
Dimension E	4.60 in116.8 mm
Dimension B Fix	1.65 in41.9 mm
Dimension B Exp	1.73 in43.9 mm
Dimension F	7.63 in193.8 mm
Dimension D	5.50 in139.7 mm
Dimension H	0.50 in12.7 mm
Dimension J (Bolt Size)	0.5 in12 mm
Dimension L	3.40 in86.4 mm
Dimension RVV	0.59 in15.0 mm
Dimension SVV	3.99 in101.3 mm
Dimension G	5.500 in139.7 mm
Dimension N	1.69 in42.9 mm
C - Dynamic Load (Basic)	47800 lb213 kN
C0 - Static Load	52000 lb231 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.90
Y2 - Geometry Factor	4.32
Oil Lubrication - M/N Seal	1700 rpm
Oil Lubrication - T Seal	3050 rpm
Oil Lubrication - B/C/O Seal	1400 rpm
Grease Lubrication - M/N Seal	1700 rpm
Grease Lubrication - T Seal	2600 rpm
Grease Lubrication - B/C/O Seal	1400 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0015 in0.038 mm
Pre Install Clearance Min	0.0030 in0.075 mm
Pre Install Clearance Max	0.0037 in0.095 mm
