Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Four-Bolt Pillow Block
- QAPF20A100S

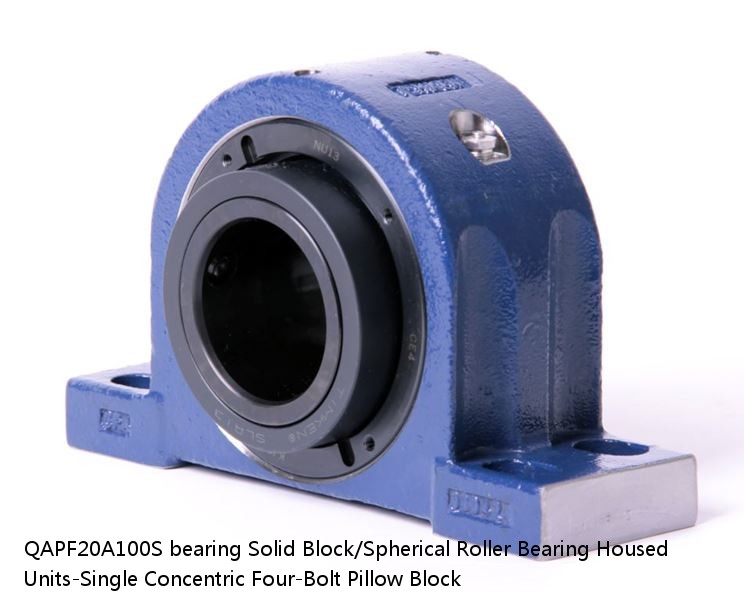

QAPF20A100S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Four-Bolt Pillow Block
QAPF20A100S PDF download| Price： | enquiry |
| Model Number： | QAPF20A100S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 67 lb30.400 Kg |
| UPC Code： | 0883450299282 0883450299299 0883450299305 0883450299312 0883450299329 0883450299336 0883450299343 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAPF20A100SB QAPF20A100SC QAPF20A100SEB QAPF20A100SEC QAPF20A100SEM QAPF20A100SEN QAPF20A100SEO QAPF20A100SET QAPF20A100SM QAPF20A100SN QAPF20A100SO QAPF20A100ST |
| Locking Style | Single Concentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450299282 0883450299299 0883450299305 0883450299312 0883450299329 0883450299336 0883450299343 0883450299350 0883450299367 0883450299374 0883450299381 0883450299398 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RA | 0.35 in8.9 mm |
| Dimension SA | 4.59 in116.6 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 6826N | - | 130 | 1.0 | 1.1 | 6826N | 0.758 |
| 07100S/96 | 13.495 | 25.400 | 1.0 | 1.6 | 11000 | 7900 |
| 46330 | 80 | 150 | 3.0 | 46330 | 250 | 98.4 |
| 7305 BE-2RZP | 11000 | 0.6 | 14 | 24.2 | 7305 BE-2RZP | 25.000 |
| AHX 3130 G | KM 32 | HMV 32 E | AHX 3130 G | 145.000 | 150.000 | 101.000 |
| 7319BDB FY | 95 | 3.0 | 7319BDB FY | 3200 | 2400 | 200 |
| 6013/NR/C3 | 0.43 Kg | 1.100 mm | 18.000 mm | 100.000 mm | 9700 rpm | 6700 rpm |
| E/P2B/TRB/40MM/ECO/ECC | 2.37 | 1.96 | 0.7 | 0.87 | 10 lb | 0883450505727 |
| UKFS315+H2315X | A-PT1/8 | 65 | Heavy-duty(3) | UKFS315+H2315X | - | - |
| UKIP213J+H313X | A-PT1/8 | 60 | Normal-duty (2) | UKIP213J+H313X | - | - |
