Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU15A211S

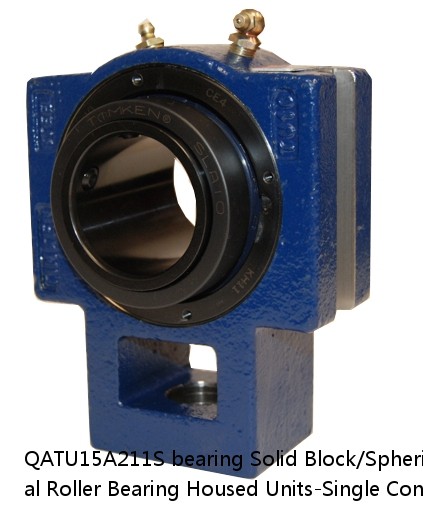

QATU15A211S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU15A211S PDF download| QATU15A211S interchange timken QATU15A211S | |
| QATU15A211S cross reference timken QATU15A211S | |
| QATU15A211S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QATU15A211S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 35 lb15.90 Kg |
| r(min): | 0883450018128 0883450018197 0883450272407 0883450272575 0883450273060 0883450273077 0883450273084 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 2-11/16 in |
| Size: | Imperial |
| Weight： | 0.050 mm0.0020 in |
| Bearing Number： | 0.080 mm0.0031 in |
| Housing Construction： | 2900 rpm |
| UPC Code： | 1600 rpm |
| Shaft Size Type： | 1300 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 2-11/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU15A211SB QATU15A211SC QATU15A211SEB QATU15A211SEC QATU15A211SEM QATU15A211SEN QATU15A211SEO QATU15A211SET QATU15A211SM QATU15A211SN QATU15A211SO QATU15A211ST |
| Locking Style | Single Concentric |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450018128 0883450018197 0883450272407 0883450272575 0883450273060 0883450273077 0883450273084 0883450273091 0883450273107 0883450273114 0883450273121 0883450273138 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension N | 3.82 in97.0 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb220 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.050 mm0.0020 in |
| Pre Install Clearance Max | 0.080 mm0.0031 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| KRVE 62 PPA | 9.000 | 72.000 | 31.400 | 62.000 | KRVE 62 PPA | 28.000 |
| 23032EMW33C3 | 3.05 | 4.65 | 3.12 | 2400 | 2000 | 2.00 mm0.080 in |
| HR32022XJ | 0.77 | Standard | 110 | 2.0 | 2.0 | 2.5 |
| SSAFS 22538 | 711.200 | SSAFS 538 | 200.0250 | 398.46250 | SSAFS 22538 | 176.2125 |
| SR 180x12 90 | - | - | - | - | - | - |
| NUP238E | 190 | 4.0 | 4.0 | NUP238E | 24.200 | 2 000 |
| BAM 1314 | 20.638 | BAM 1314 | 27.0 | 20.638 | 26.988 | 14700 |
| NART 30FR | 30 | 50.0 | NART 30FR | 447.0 | 41200 | 62 |
| NKS24A | 0.6 | NKS24A | 20000 | 24 | 37 | 5.30 |
| QAAF22A407S | 3.80 | 2.55 | 63.0 lb28.6 Kg | 0883450020008 0883450020015 0883450020039 0883450020046 0883450020053 0883450020060 0883450020077 08 | 0.0050 in0.127 mm | 4-7/16 in |
