Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
- QMTU18J304S

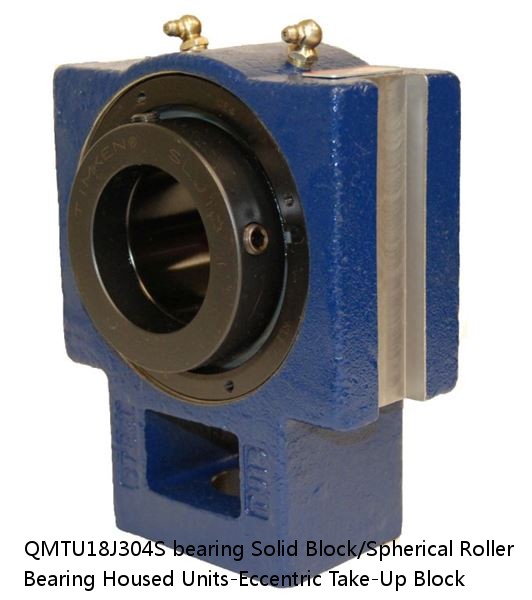

QMTU18J304S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
QMTU18J304S PDF download| Price： | enquiry |
| Model Number： | QMTU18J304S |
| Weight： | 4.31 |
| Bearing Number： | 2.90 |
| Housing Construction： | 44 lb20.00 Kg |
| UPC Code： | 0883450103671 0883450103688 0883450103701 0883450103718 0883450103725 0883450103732 0883450103749 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMTU18J304SB QMTU18J304SC QMTU18J304SEB QMTU18J304SEC QMTU18J304SEM QMTU18J304SEN QMTU18J304SEO QMTU18J304SET QMTU18J304SM QMTU18J304SN QMTU18J304SO QMTU18J304ST |
| Locking Style | Eccentric |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450103671 0883450103688 0883450103701 0883450103718 0883450103725 0883450103732 0883450103749 0883450103756 0883450169332 0883450169714 0883450260732 0883450261050 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension K | 1.44 in36.6 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension N | 4.19 in106.4 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.060 mm0.0024 in |
| Pre Install Clearance Max | 0.100 mm0.0039 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 24060EJW33W45AC3 | 2.06 | 3.13 | 2.11 | 24060CJW33W45AC3 | 750 | 670 |
| KT 233016 | 23 | KT 233016 | 22.0 | 23 | 30 | 18600 |
| NU1030MA | NU | N | 3100 | 2500 | METRIC | 225 mm8.8583 in |
| 22217RZ | 2.0 | 22217RZ | 4100 | 3000 | 150 | 35.7 |
| P2BC 012-CPSS-DFH + ECB 504 | 5000 | 6.55 | 10.8 | P2BC 504 | P2BC 012-CPSS-DFH | YAS 204-012-2LP1W/SS |
| BH-1812 | BH-1812 | 8.30 | 28.575 | 19.050 | - | 38.100 |
| ZKP210-27 | A-1/4-28UNF | ZKP210-27 | Normal-duty (2) | 1 11/16 | - | - |
| 6405/NR/C3 | 0.53 Kg | 1.500 mm | 21.000 mm | 80.000 mm | 15000 rpm | 10000 rpm |
| NK5/10T2 | 0.15 | NK5/10T2 | 0.0031 | 40000 | 27000 | 10 |
| NUP208EM | Standard | 40 | 1.0 | 1.0 | 1.1 | 1.1 |
